24375-03010 Oil Control Variable Valve Timing VVT Solenoid for Hyundaii10/2011 i20/2011 Kia Picanto/2011 Rio/2011 ceed/2015 High quality

Description

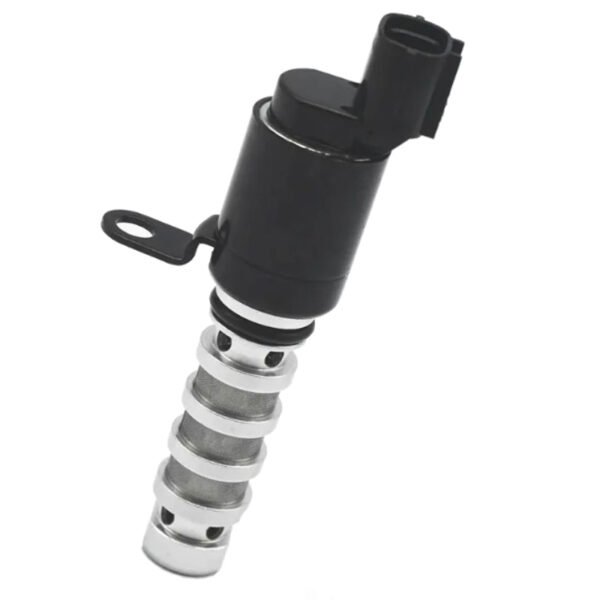

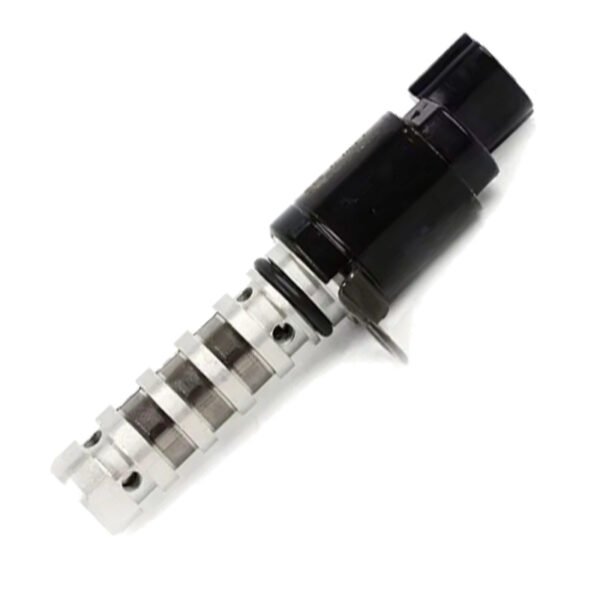

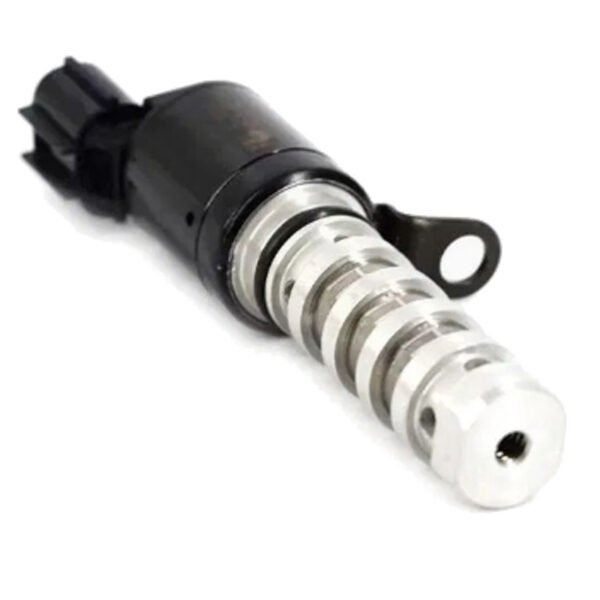

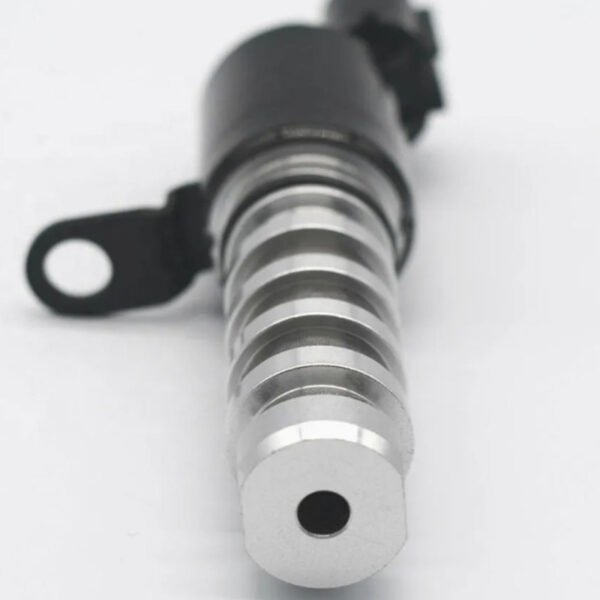

24375-03010 Oil Control Valve (VVT Solenoid) is a genuine OEM-grade replacement designed for Hyundai/Kia’s 1.2L-1.6L Gamma/Kappa engines (2011-2015 models). Here’s the complete professional breakdown:

✅ Confirmed Vehicle Compatibility

✔ Hyundai i10 (2011+) – 1.2L Kappa (G4LA)
✔ Hyundai i20 (2011+) – 1.4L Gamma (G4FA)
✔ Kia Picanto (2011+) – 1.2L (G4LA)
✔ Kia Rio (2011-2017) – 1.4L (G4FA)
✔ Kia Ceed (2015+) – 1.4L (G4FC)

Note: This is the updated version with improved anti-clog design

🔧 Technical Specifications

• OEM Part Number: 24375-03010

• Engine Applications:

  • 1.2L Kappa (G4LA)

  • 1.4L Gamma (G4FA/G4FC)

• Voltage: 12V PWM-controlled

• Flow Rate: 1.8 L/min @ 35 psi

• Response Time: <120ms

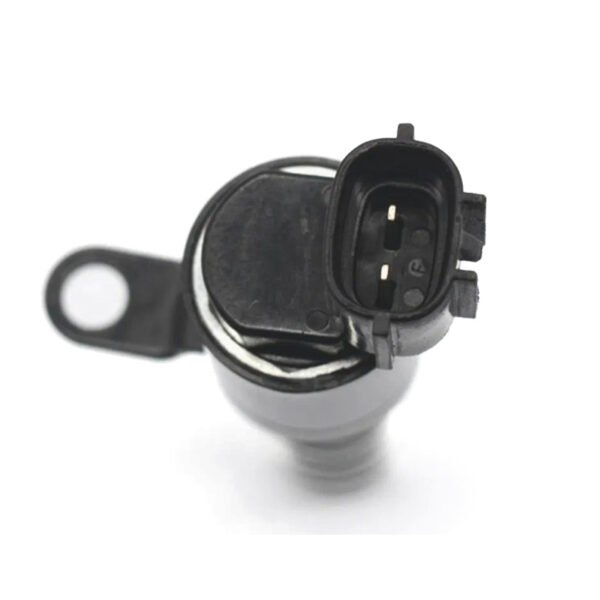

• Connector: Sumitomo TS-040 (weatherproof)

• Mounting Torque: 4.5-5.5 Nm (40-49 in-lbs)

⚠️ Failure Symptoms

• Diagnostic Trouble Codes:
  ▸ P0010 (VVT Circuit Malfunction)
  ▸ P0011 (Over-Advanced Timing)
  ▸ P0012 (Over-Retarded Timing)

• Operational Issues:
  ▸ Cold-start rattling (first 1-2 seconds)
  ▸ Rough idle (650-850 RPM fluctuation)
  ▸ 10-15% fuel economy loss
  ▸ Hesitation during acceleration

🔧 Professional Installation Protocol

1. Location:

   • Timing chain cover (front right side)

   • Accessible without removing valve cover

2. Special Tools:

   • 10mm flex-head ratchet

   • O-ring removal pick

   • Digital torque wrench

3. Critical Steps:

   • Clean mating surface with brake cleaner

   • Prime new solenoid with 5W-30 oil

   • Apply thread sealant (blue Loctite 243)

   • Reset ECU by disconnecting battery for 15 minutes
