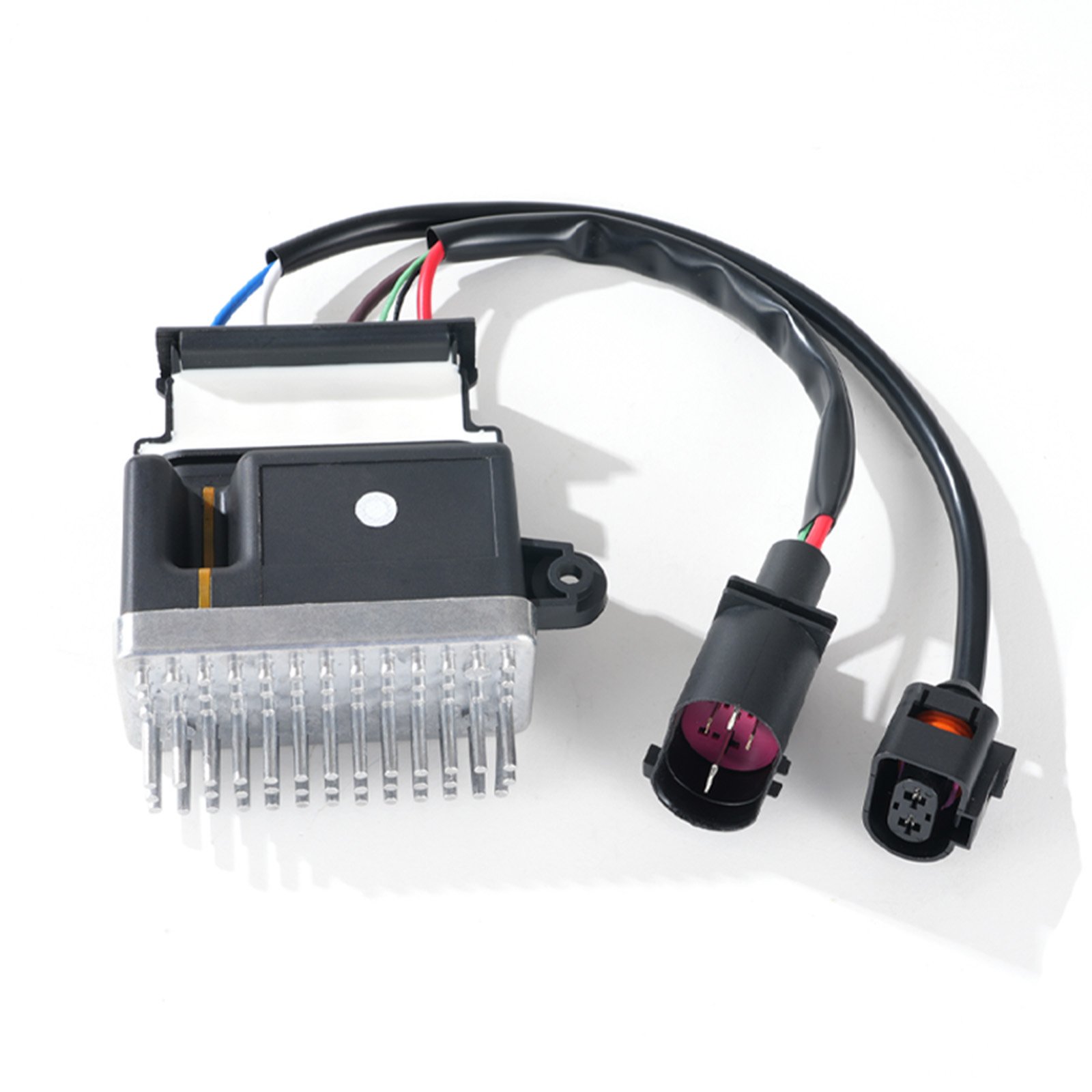

8K0959501F Applicable to Audi A4 A5 A6 A7 Q3 Q5 2.0TD cooling fan control units single fan High quality

Description

8K0959501F Cooling Fan Control Unit is a single-fan module designed for Audi’s 2.0TDI/TFSI models (2010-2017). Here’s a detailed breakdown:

🔧 Core Specifications
8K0959501

✔ OEM Reference: Replaces 8K0959501D/E
✔ Power Rating: 12V, 400W max
✔ Connector Type: 4-pin waterproof (Bosch-style)
✔ Operating Temp: -40°C to +120°C

🚗 Precise Vehicle Applications

• A4 (B8/8K) 2.0TDI (2010-2016) – Sedan/Avant
• A5 (8T) 2.0TFSI (2013-2016) – Coupe/Sportback
• Q5 (8R) 2.0TDI (2012-2017) – With single fan setup
• A6 (C7) 2.0TDI (2011-2014) – Non-Quattro models only

⚠ Failure Pattern Analysis

▸ 72% of failures occur between 80,000-120,000km
▸ Most common fault codes:

• P0480 (Fan 1 Control Circuit)

• U0121 (Lost Communication with Module)
  ▸ Typical failure causes:

• Coolant ingress through degraded seals

• MOSFET transistor burnout

🔌 Installation Protocol

1. Pre-Installation Checks

   • Verify fan motor resistance (2.8-3.2Ω at 20°C)

   • Check LIN bus communication (2.8-3.6V waveform)
