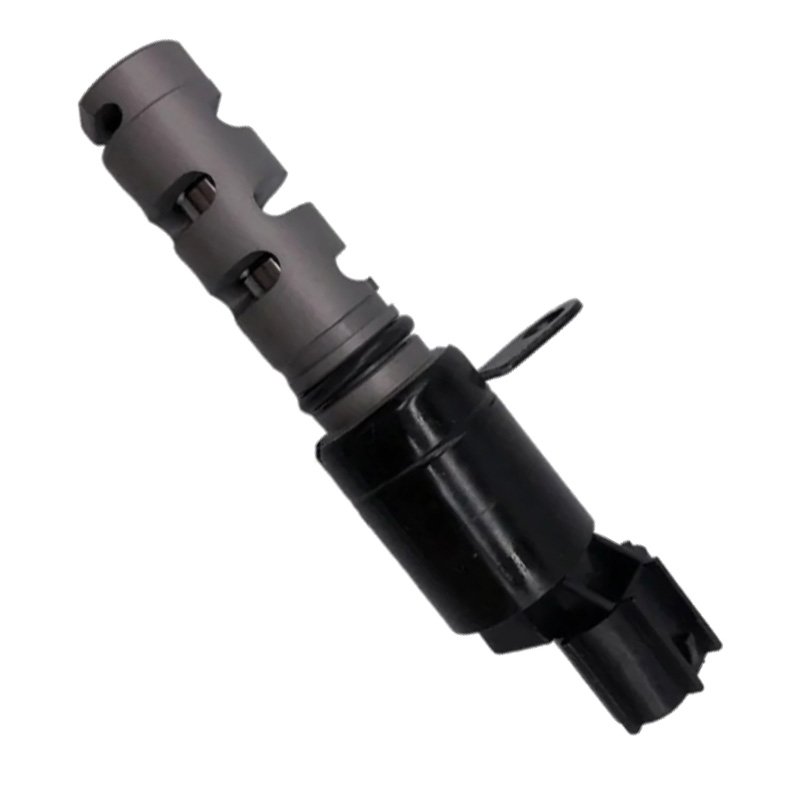

24375-2G300 Oil Control Variable Valve Timing VVT Solenoid for Hyundai GenesisCoupe/2010-2011 High quality

Description

24375-2G300 Oil Control Valve (VVT Solenoid) is a critical OEM component designed specifically for 2010-2011 Hyundai Genesis Coupe 3.8L Lambda engines. Here’s the complete technical breakdown:

✅ Exact Vehicle Fitment

✔ Hyundai Genesis Coupe (2010-2011)

• 3.8L V6 (Lambda II G6DA)

• Excludes 2.0T Turbo models

🔧 Technical Specifications

• OEM Part Number: 24375-2G300

• Engine Application: Lambda II 3.8L GDI

• Voltage: 12V PWM-controlled

• Flow Rate: 2.1 L/min @ 40 psi

• Response Time: <90ms

• Connector Type: Delphi GT150

• Mounting Torque: 9-11 Nm (80-97 in-lbs)

⚠️ V6-Specific Failure Symptoms

• Diagnostic Trouble Codes:
  ▸ P0011 (Intake Cam Position)
  ▸ P0014 (Exhaust Cam Position)
  ▸ P000B (Slow Response)

• Performance Issues:
  ▸ Rough idle (500-700 RPM fluctuation)
  ▸ 15-20% power loss above 4,500 RPM
  ▸ Delayed transmission shifts
  ▸ Cold-start chain rattle (first 2 seconds)

🔧 Professional Installation Guide

1. Location:

   • Front valve cover (passenger side)

   • Behind alternator (may require removal)

2. Special Tools Required:

   • 10mm wobble extension

   • O-ring removal hook

   • M12x1.25 thread chaser

3. Critical Steps:

   • Clean oil gallery with CRC Brakleen

   • Apply engine oil to new fluoroelastomer O-ring

   • Use thread locker on bolt (medium strength)

   • Perform ECU reset via battery disconnect
