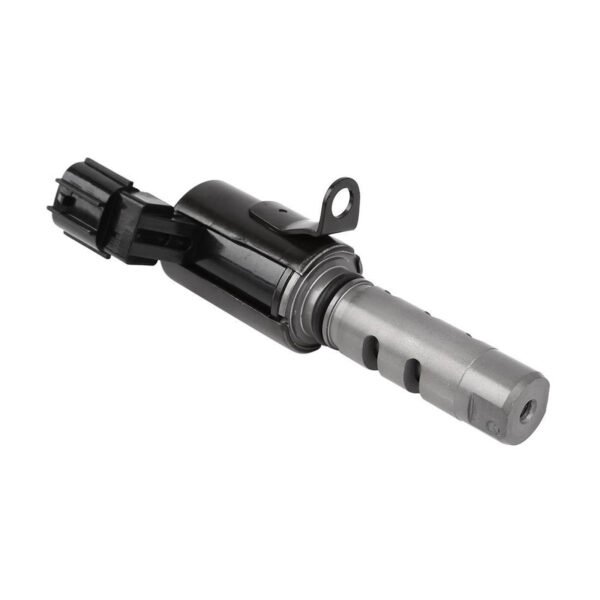

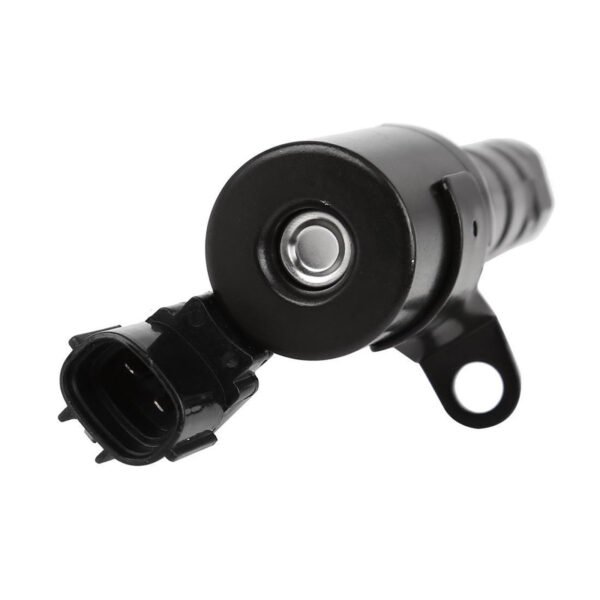

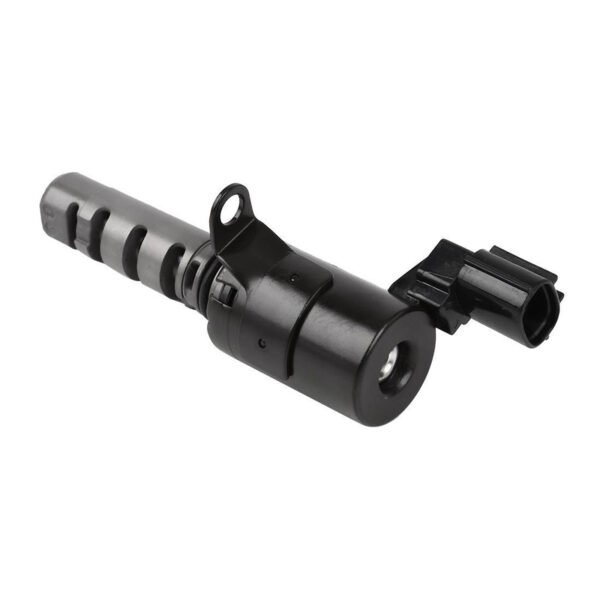

24355-2B000 New Variable Valve Timing Solenoid (VVT) For 2010 -2011 KIA SOUL 1.6L L4 High quality

Description

24355-2B000 Variable Valve Timing (VVT) Solenoid is a high-quality OEM-grade replacement designed for 2010-2011 Kia Soul 1.6L (Gamma engine) models. Here’s the complete technical breakdown:

🔧 Core Specifications

✔ OEM Part Number: 24355-2B000
✔ Replaces: 24355-1G000 (older version)
✔ Electrical/Mechanical Specs:

• 12V DC operation

• 6.5-7.5Ω coil resistance (at 20°C/68°F)

• Operating oil pressure: 14-85 psi

• Temperature range: -30°C to 150°C (-22°F to 302°F)
  ✔ Construction:

• Aluminum housing with nickel-plated connector

• High-temp fluoroelastomer seals

🚗 Precision Fitment Guide

• Kia Soul (2010-2011)

• 1.6L G4FC Gamma engine (non-turbo)

• Includes Base, Plus, and Exclaim trims
  ✔ Also Compatible With:

• 2010-2012 Hyundai Accent (1.6L)

• 2010-2011 Kia Forte (1.6L)

⚠ Failure Symptoms & Diagnostics

▸ Common Failure Signs:

• P0011 (VVT over-advanced) or P0012 (VVT over-retarded)

• Cold start rattling (lasting 1-2 seconds)

• Reduced fuel economy (10-12% drop)

• Rough idle when engine is warm

• Check Engine Light illumination

▸ Diagnostic Tests:

1. Resistance Check: 6.5-7.5Ω between terminals

2. Activation Test: 12V applied should produce audible “click”

3. Oil Pressure Test: Minimum 28 psi at idle

4. Oil Screen Inspection: Check for metal debris

🔧 Installation Protocol

1. Pre-Installation:

   • Disconnect battery negative terminal

   • Clean oil galley with brake cleaner

   • Replace O-ring (included with quality units)

2. Installation Steps:

   • Torque to 89 in-lbs (10 N·m max)

   • Apply clean engine oil to new O-ring

   • Ensure proper connector engagement

3. Post-Installation:

   • Clear trouble codes with OBD-II scanner

   • Perform idle relearn:

     • Start engine, hold at 2000 RPM for 2 minutes

     • Allow 5 minutes of idle stabilization

📜 Technical Service Bulletins

• Kia TSB 12-EM-005: Updated VVT solenoid screen design
• SSM 75642: Requires oil change if metal debris is present
• Campaign 132: Extended warranty coverage for 2010 models

⚠ Critical Notes

✖ Not Compatible With:

• 2012+ Kia Soul (updated part #24355-2C000)

• 2.0L Nu engine models

• Turbocharged Gamma engines (G4FJ)

Pro Tips:

1. Always use 5W-20 or 5W-30 full synthetic oil

2. Replace both intake/exhaust solenoids if over 100K miles

3. Genuine Kia part includes upgraded filtration screen

For exact verification:
① Provide last 8 digits of VIN
② Check current DTCs
③ Verify oil change history
