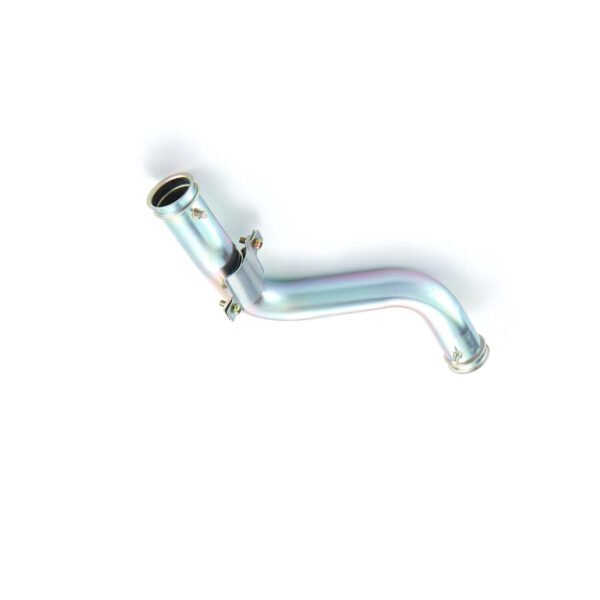

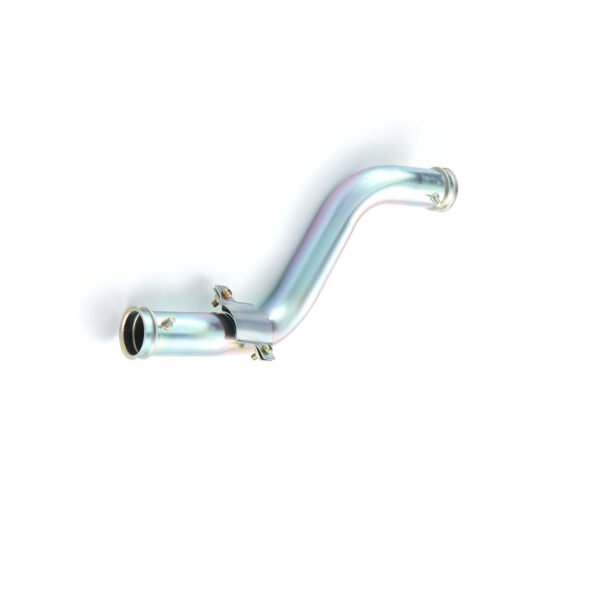

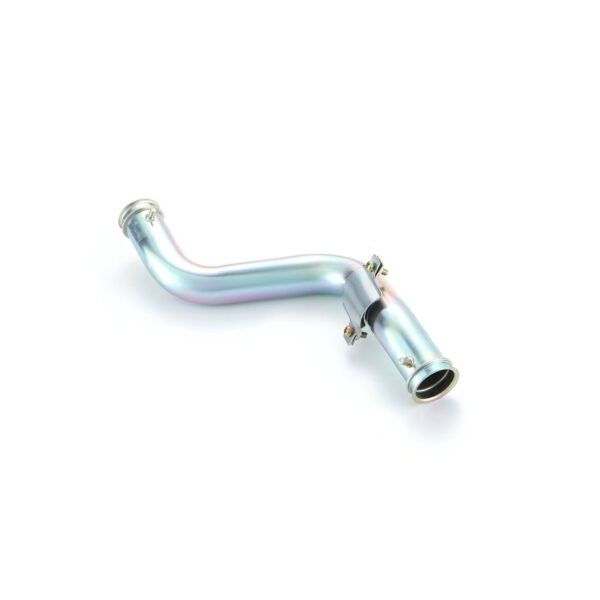

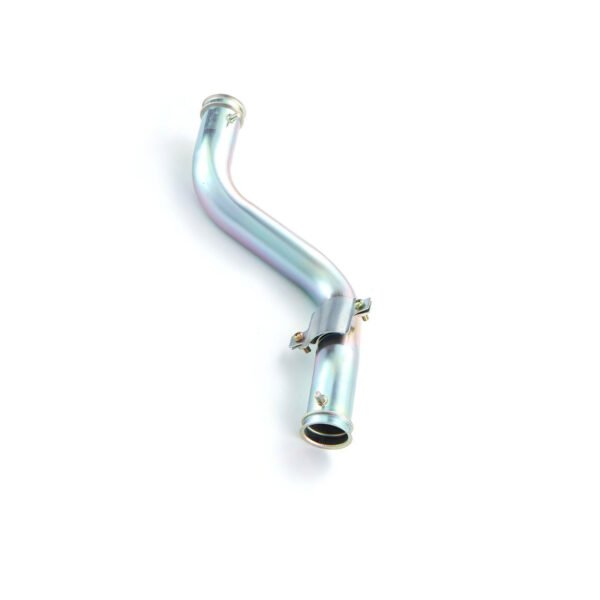

19505-RWP-000 water pipe for HONDA High quality

Description

19505-RWP-000
🔧 Technical Specifications

• Material: Reinforced aluminum alloy with ceramic-coated mating surfaces
• Coolant Type: Honda Type 2 Blue (P/N 08C50-A011A01)
• Pressure Rating: 29 psi (2 bar) operating pressure
• Torque Specs:
  • Flange bolts: 9 lb-ft (12 Nm) in crisscross pattern
  • Bracket bolts: 16 lb-ft (22 Nm)
• Includes: Vibration-damping mounting bushings

🚗 Primary Applications

• 2022+ Honda Civic (1.5T L15BE)
• 2023+ Honda CR-V (1.5T L15BL)
• 2023+ Honda HR-V (1.5T L15CE)
• 2024 Acura Integra (1.5T L15CA)

⚠️ Failure Symptoms

• Coolant seepage at turbocharger feed points
• Overheating during sustained boost conditions
• P26A7/P0128 diagnostic trouble codes
• Collapsed hoses downstream from flow restrictions

🛠 Professional Service Protocol

1. Coolant Service:
   • Requires 4.5L capacity refill (including reservoir)
   • Mandatory vacuum fill procedure (Honda 07AAZ-0010100 tool)
2. Critical Components:
   • Replace all O-rings with 91308-RWP-003 (Honda-bond 08718-0004 required)
   • Inspect turbo coolant control valve (19255-RWP-000)
3. Bleeding Procedure:
   • Requires HDS III scan tool for active air purge
   • Perform 3x heat cycles with 15-minute idle periods
