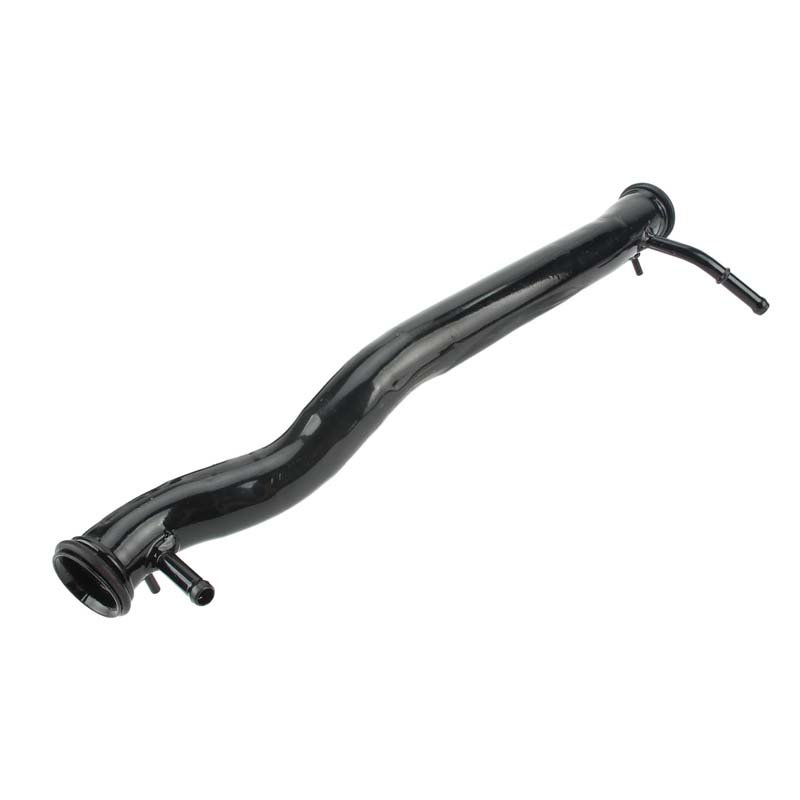

19505-P06-000 water pipe for HONDA High quality

Description

19505-P06-000
🔧 Core Specifications

• Material: Cast aluminum with reinforced mounting points
• Coolant Type: Honda Long Life Blue (Type 2, P/N 08C50-A011A01)
• Pressure Rating: 22 psi (1.5 bar)
• Torque Specs:
  • Housing bolts: 9 lb-ft (12 Nm) in crisscross sequence
  • Bracket bolts: 12 lb-ft (16 Nm)
• Service Position: Front engine block, below throttle body

🚗 Precise Applications

• 2008-2012 Honda Accord (2.4L K24Z2/Z3)
• 2009-2014 Acura TSX (2.4L K24Z3)
• 2010-2013 Honda CR-V (2.4L K24Z6/Z7)
• 2011-2015 Acura RDX (2.4L K24W1)

⚠️ Failure Indicators

• Coolant leaks near alternator
• Overheating during highway driving
• P0128/P2185 diagnostic codes
• Visible corrosion at pipe joints
• Heater performance issues

🛠 Professional Installation Guide

1. Coolant Service:
   • Drain completely (~5.3L capacity)
   • Use vacuum fill tool (Honda 07AAZ-0010100)
2. Critical Components:
   • Replace O-ring 91305-P06-003 (Honda-bond recommended)
   • Inspect bypass hose 19506-PX4-000
