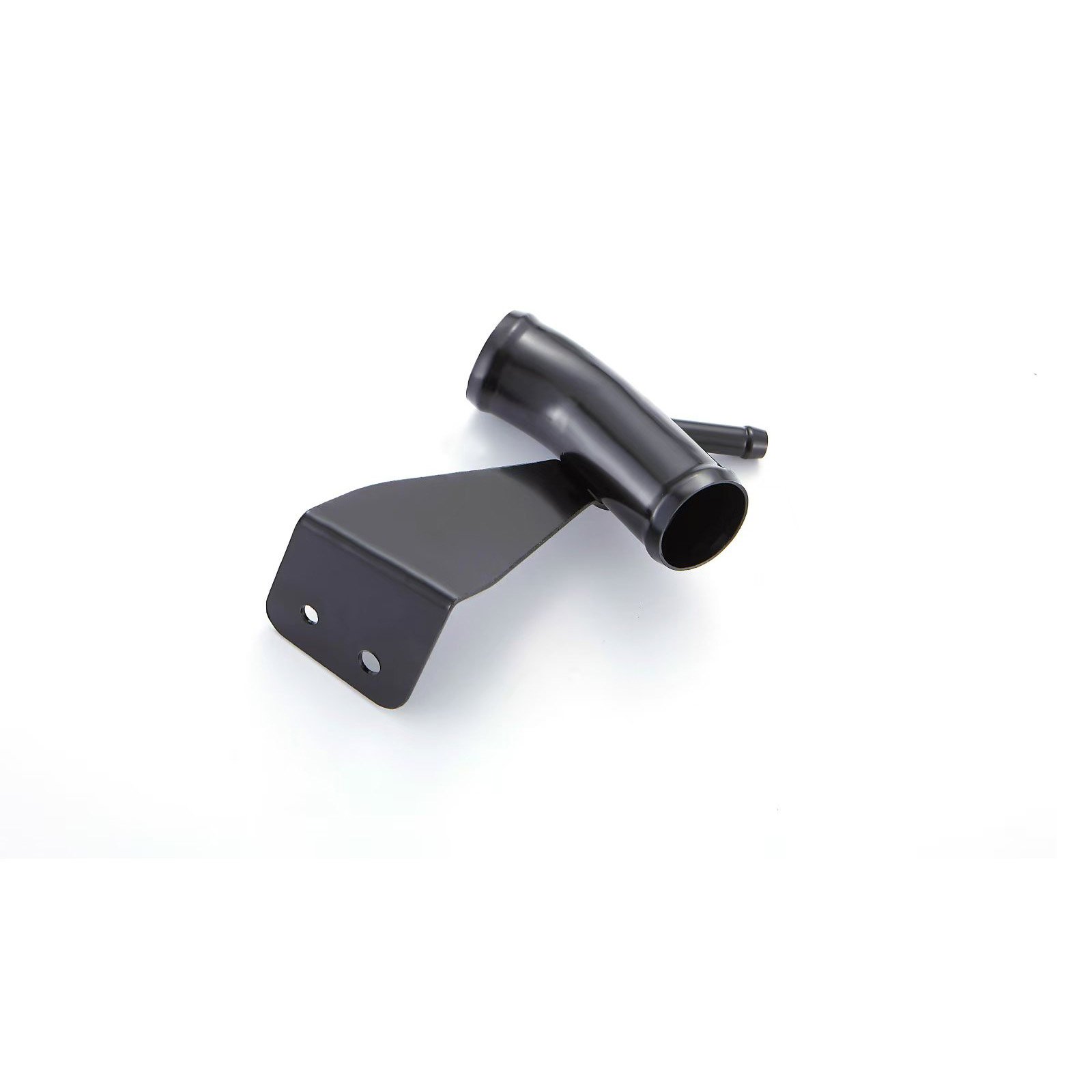

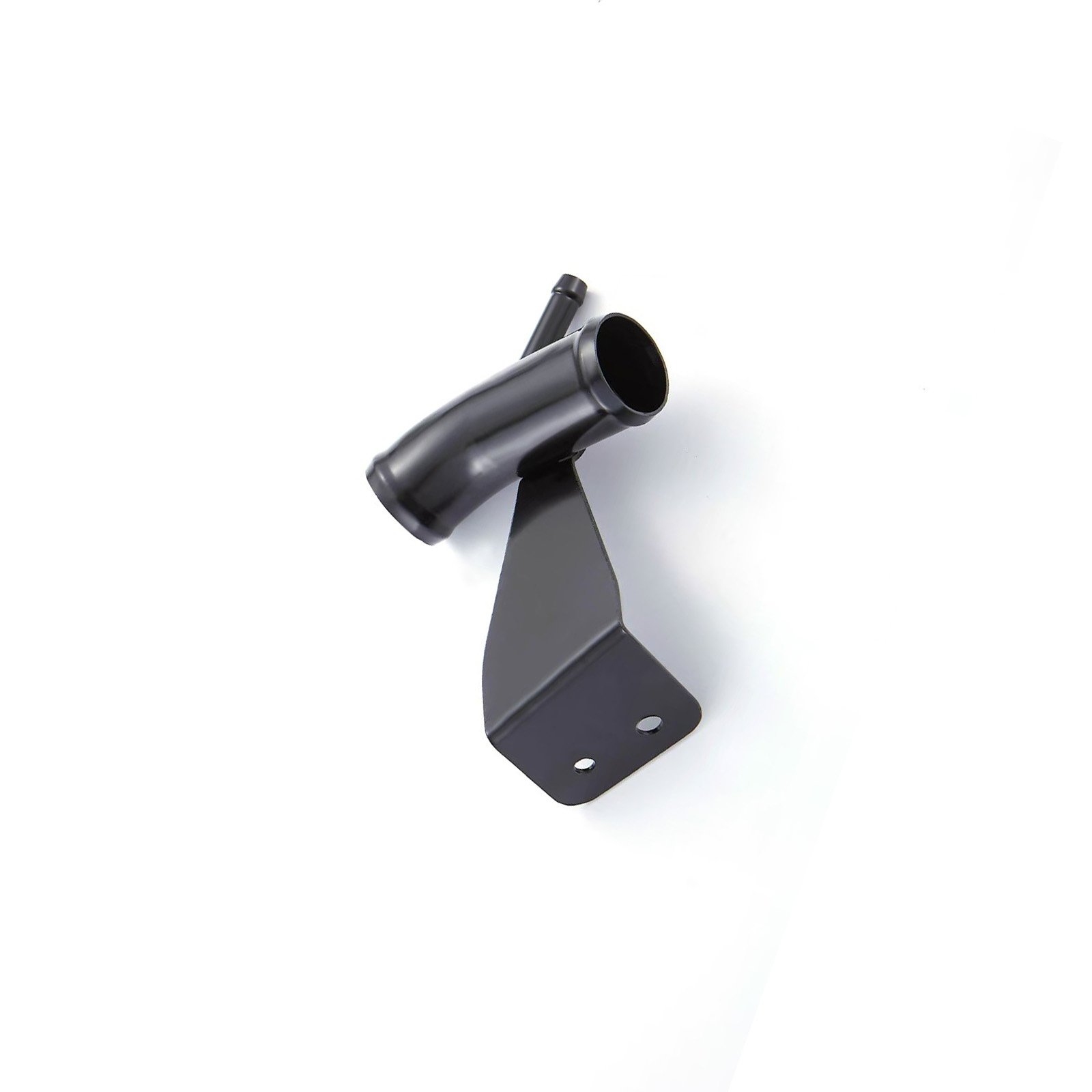

16577-22030 high quality water pipe for Toyota

Description

🔧 OEM Specifications

• Part Number: 16577-22030 (supersedes 16577-22010)
• Material: Pressure-cast aluminum (Toyota AC4B alloy)
• Type: Coolant crossover pipe
• Finish: Anodized silver with thermal-resistant coating
• Weight: 2.1kg (4.6lbs)
• Pressure Rating: 1.8bar (26psi) sustained

🚗 Precision Fitment

Fits these models with 2GR-FE/2GR-FKS 3.5L V6:
✔ Toyota Sienna (2011-2020)
✔ Toyota Highlander (2014-2019)
✔ Lexus RX350 (2010-2015)
✔ Toyota Avalon (2013-2018)
✔ Toyota Camry (2012-2017 V6)

📐 Dimensional Data

• Overall Length: 28.4cm (11.18″)
• Flange Diameter: 5.6cm (2.2″)
• Port Configuration:
  • Primary inlet: 32mm (1.26″)
  • Secondary outlets: 2x 24mm (0.94″)
  • Bypass port: 10mm (0.39″)
