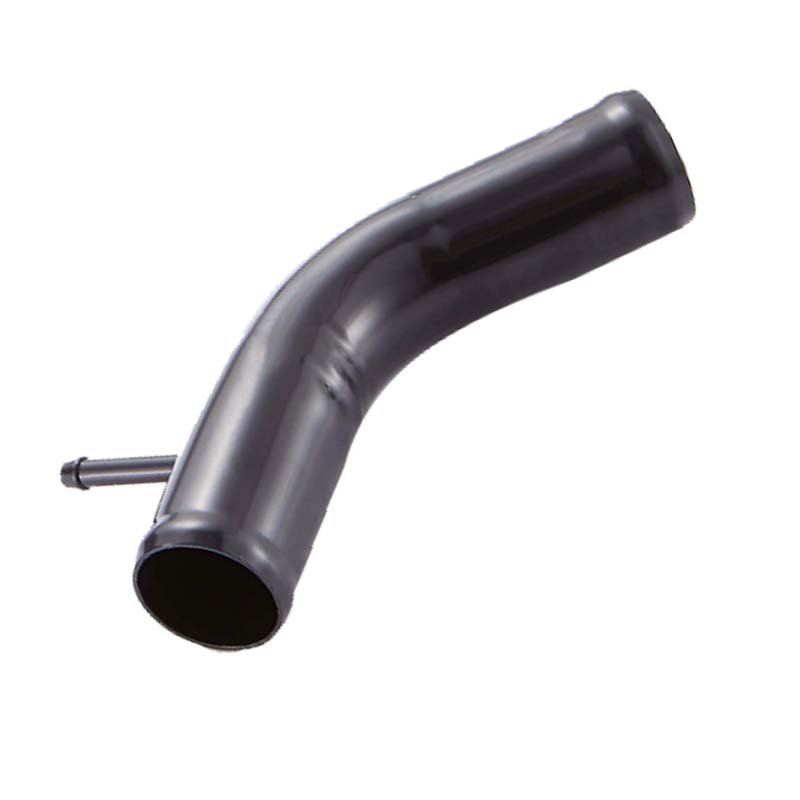

16577-06010 water pipe for HONDA High quality

Description

16577-06010
🔧 Technical Specifications

• Material: Cast aluminum with anti-corrosion coating
• Coolant Type: Honda Type 2 Blue (P/N 08C50-A011A01)
• Pressure Rating: 22 psi (1.5 bar) operating pressure
• Torque Specs:
  • Flange bolts: 9 lb-ft (12 Nm)
  • Bracket bolts: 12 lb-ft (16 Nm)
• Service Position: Rear engine block, near firewall

🚗 Primary Applications

• 2003-2007 Honda Accord V6 (J30A4)
• 2005-2010 Honda Odyssey (J35A8/A9)
• 2007-2012 Honda Pilot (J35Z2/Z5)
• 2009-2014 Acura TL (J35A7)

⚠️ Failure Symptoms

• Coolant leaks at rear engine valley
• Overheating with no visible front leaks
• White residue on transmission bellhousing
• P0128/P2185 trouble codes
• Heater performance issues

🛠 Professional Replacement Protocol

1. Coolant Drain:
   • Requires 5.7L capacity refill (J35 applications)
   • Use vacuum fill tool for proper bleeding (Honda 07AAZ-0010100)
2. Critical Components:
   • Replace O-ring 91305-P0A-003 (Honda-bond recommended)
   • Inspect bypass hose 19506-PX4-000
3. Installation:
   • Apply dielectric grease to sensor connectors
   • Follow crisscross tightening sequence
   • Torque in 3 progressive steps
