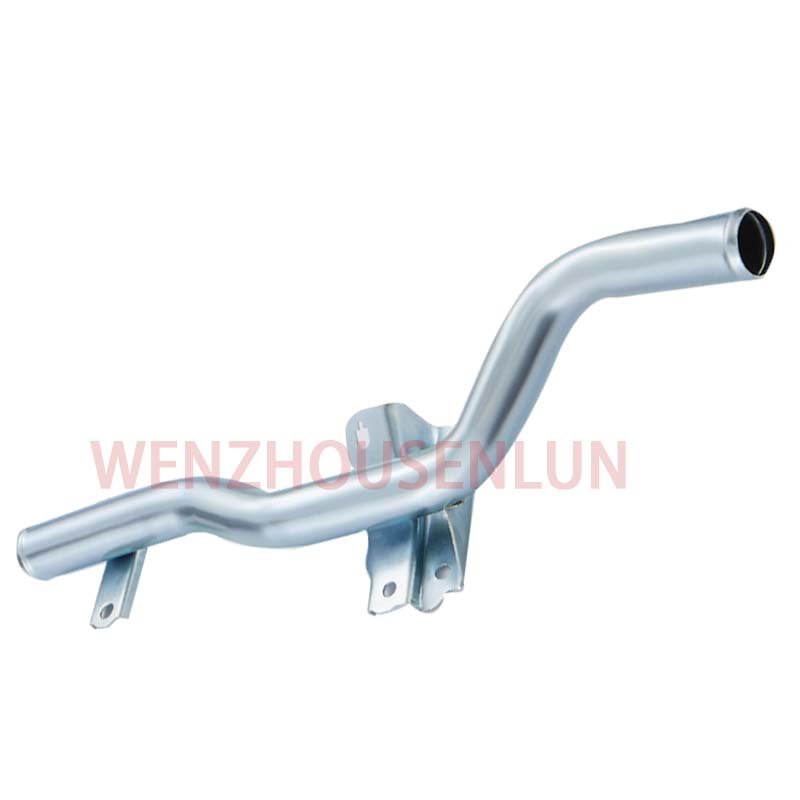

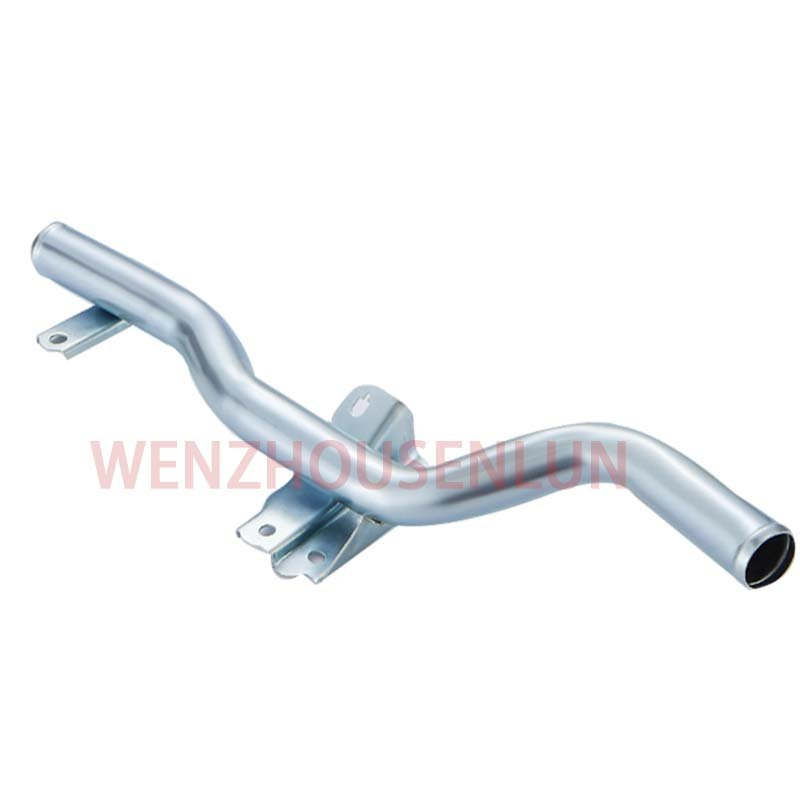

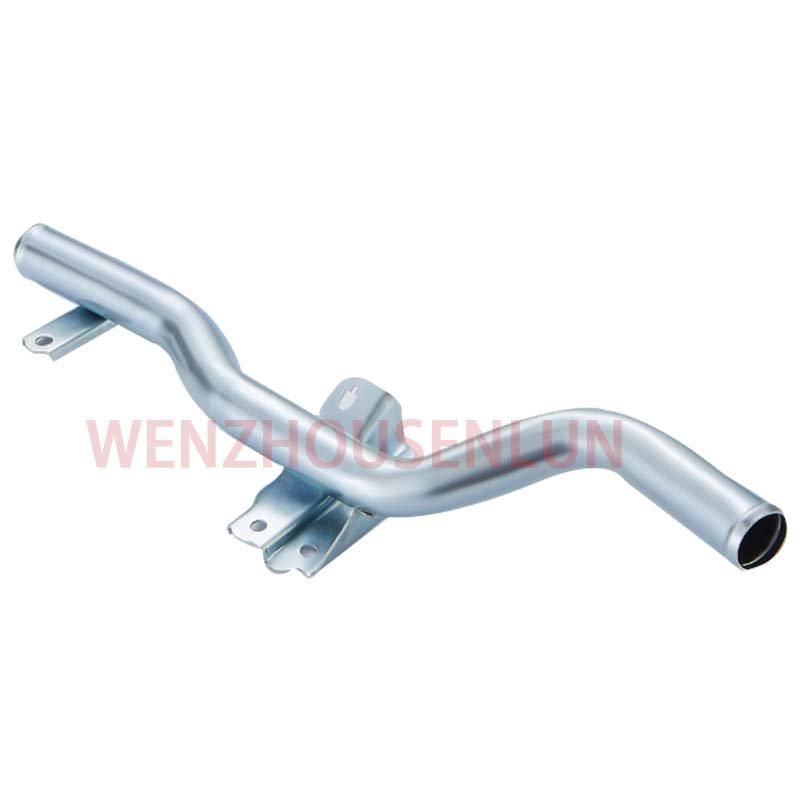

16507-BZ050 water pipe for Toyota high quality

Description

🔧 OEM Specifications

• Part Number: 16507-BZ050 (current revision)
• Material: High-silicon aluminum alloy (AC8A)
• Type: Engine coolant transfer pipe
• Finish: Anodized silver with thermal barrier coating
• Weight: 1.7kg (3.7lbs)
• Pressure Rating: 1.8bar (26psi) sustained pressure

🚗 Vehicle Compatibility

Fits these models with 2AR-FXE 2.5L hybrid engines:
✔ Toyota Camry Hybrid (2018-2024)
✔ Toyota Avalon Hybrid (2019-2022)
✔ Lexus ES300h (2019-2023)
✔ Toyota RAV4 Hybrid (2019-2023)

📐 Precision Dimensions

• Overall Length: 19.8cm (7.80″)
• Flange Diameter: 4.9cm (1.93″)
• Port Configuration:
  • Main inlet: 28mm (1.10″)
  • Secondary outlets: 2x 20mm (0.79″)
  • HV inverter cooler port: 14mm (0.55″)
• Bolt Pattern: 4-hole rectangular (M6x1.0)
