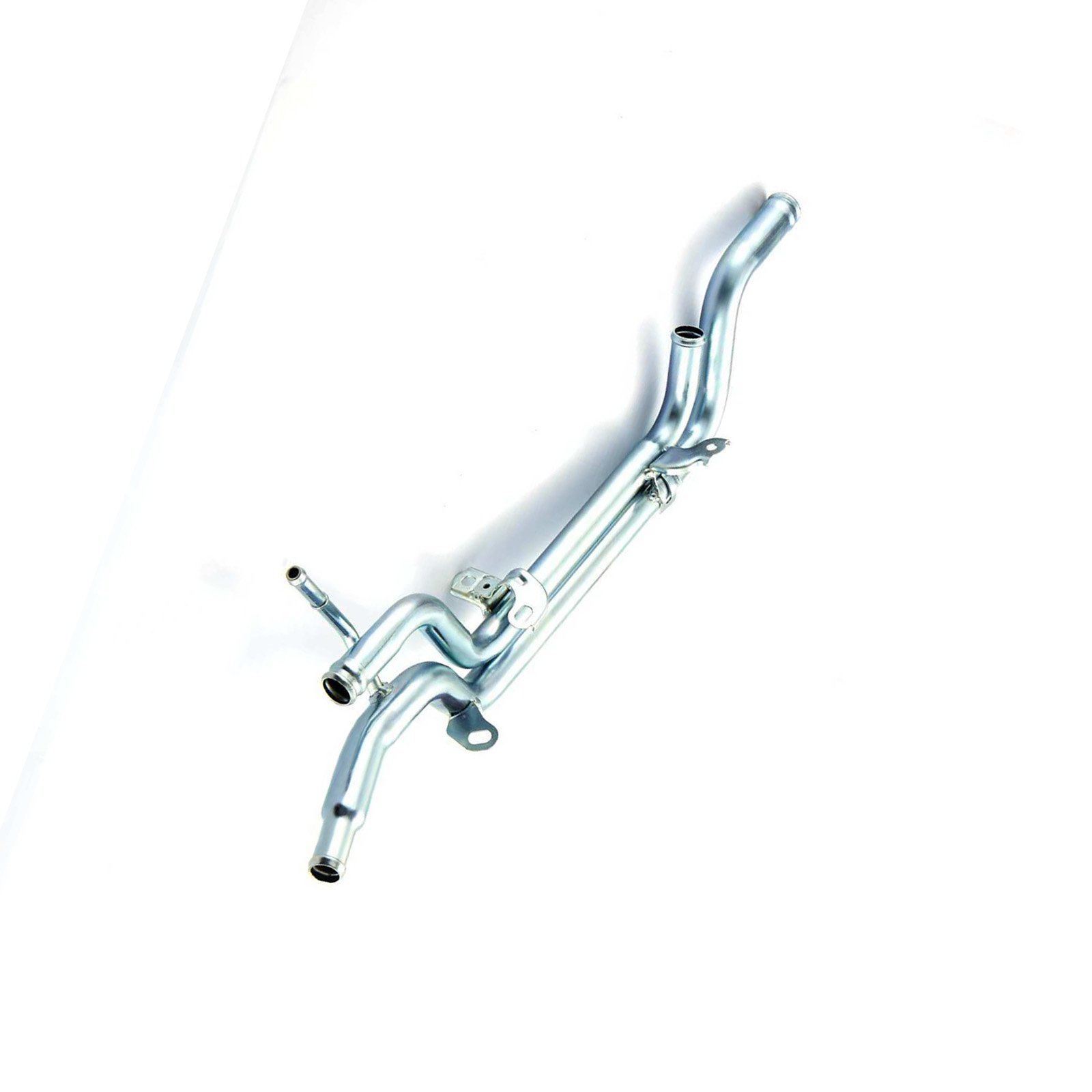

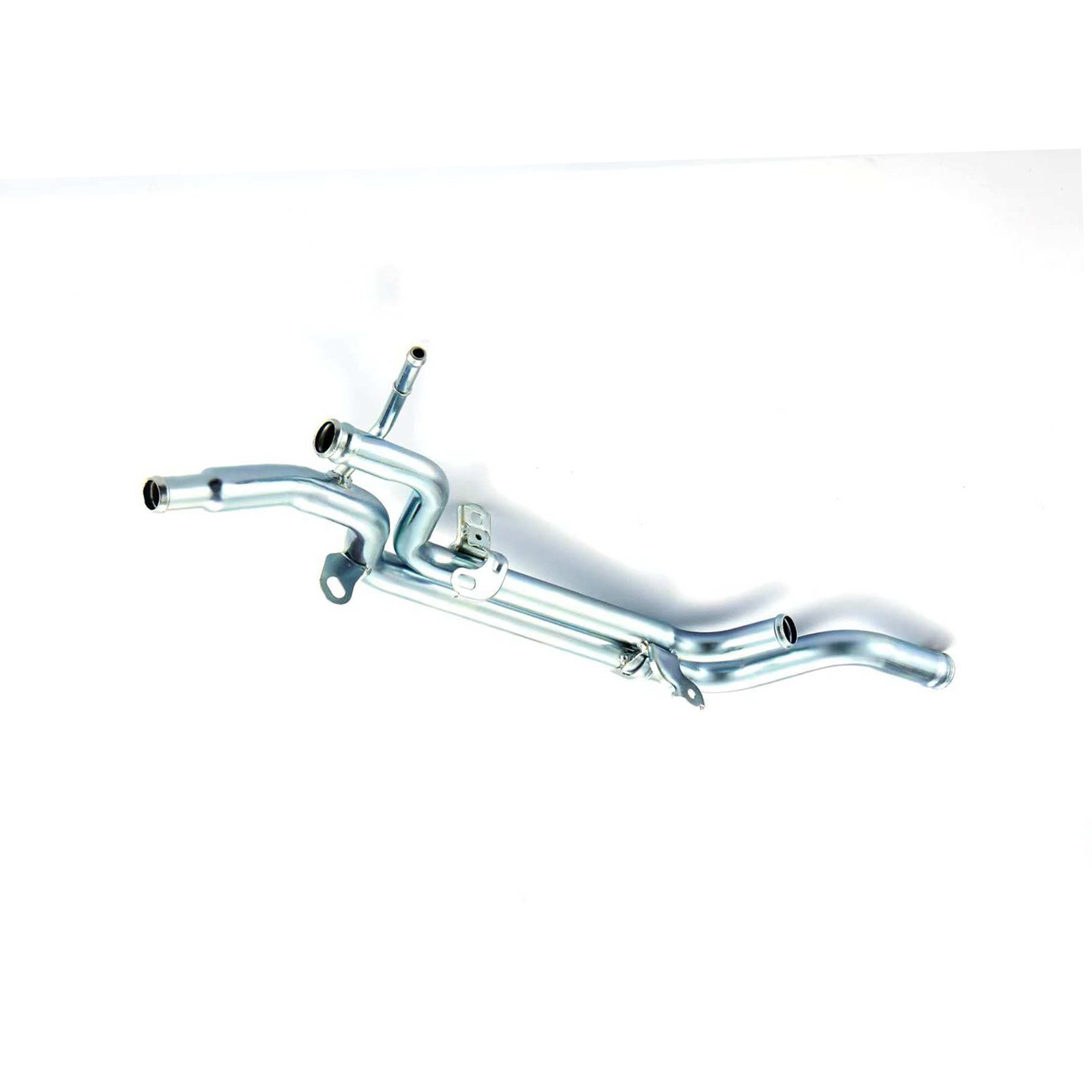

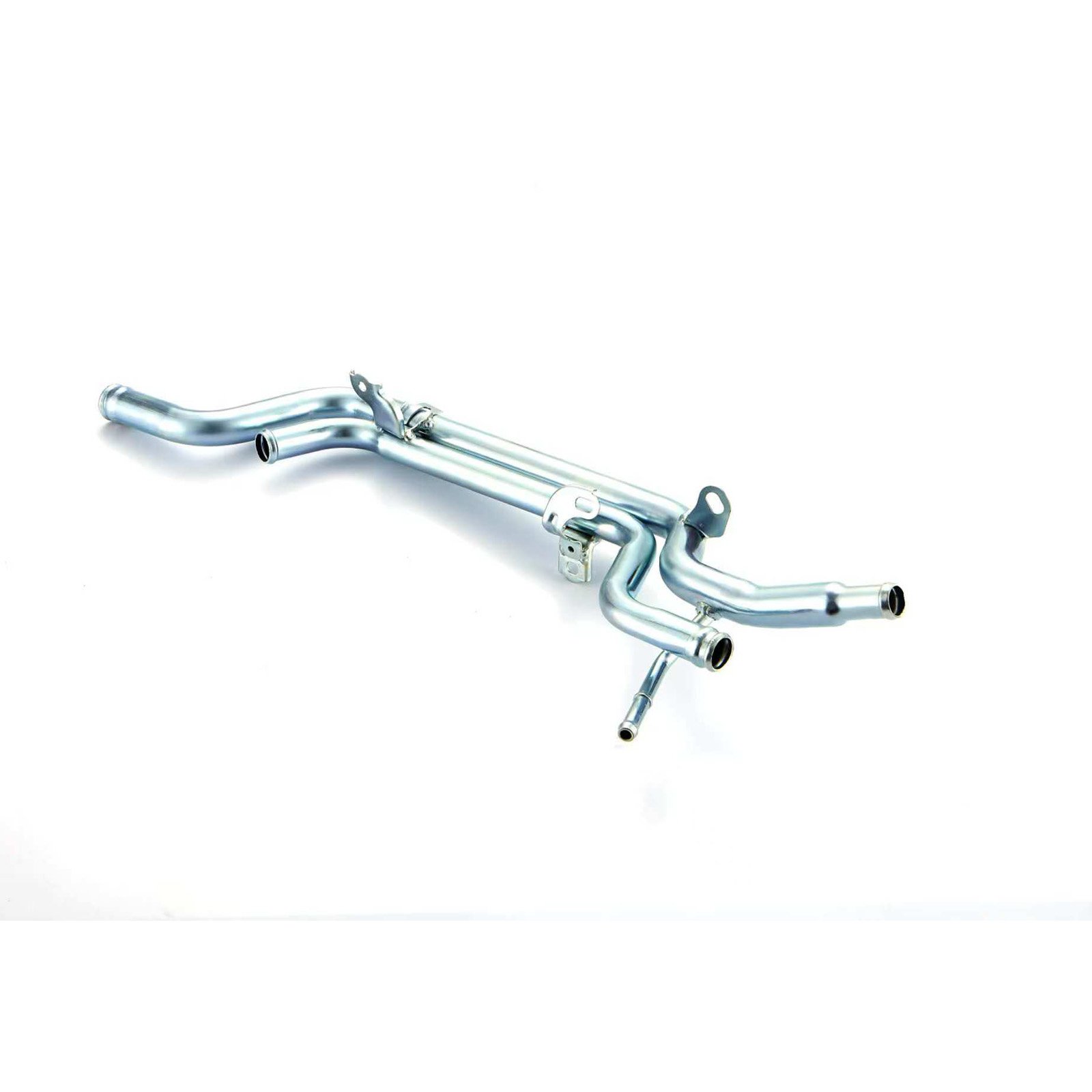

16322-31010 water pipe for Toyota high quality

Description

🔧 OEM Specifications

• Part Number: 16322-31010 (latest revision)
• Material: Cast aluminum alloy (Toyota AC4B)
• Type: Coolant bypass pipe assembly
• Finish: Anodized silver with corrosion-resistant coating
• Weight: 1.6kg (3.5lbs)
• Pressure Rating: 1.5bar (22psi) operating pressure

🚗 Vehicle Compatibility

Fits these models with 5S-FE 2.2L engines:
✔ Toyota Camry (1992-1996)
✔ Toyota Celica (1994-1999)
✔ Toyota RAV4 (1996-2000)
✔ Toyota Picnic (1996-2001)

📐 Dimensional Data

• Overall Length: 21.8cm (8.58″)
• Flange Diameter: 4.6cm (1.81″)
• Port Configuration:
  • Main inlet: 28mm (1.10″)
  • Bypass outlet: 20mm (0.79″)
  • Heater core return: 15mm (0.59″)
• Bolt Pattern: 4-hole rectangular (M6x1.0)
