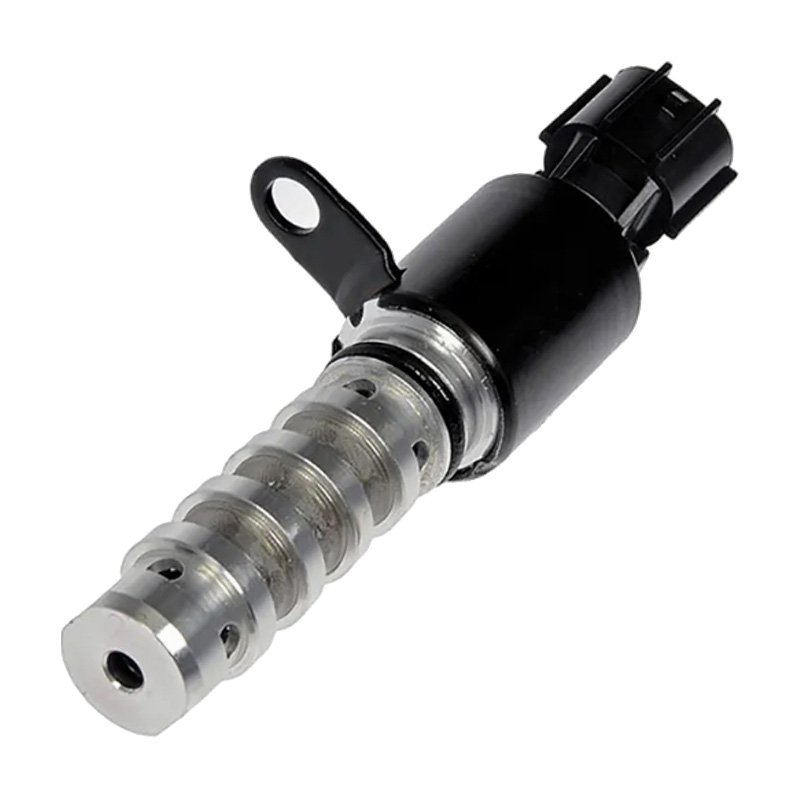

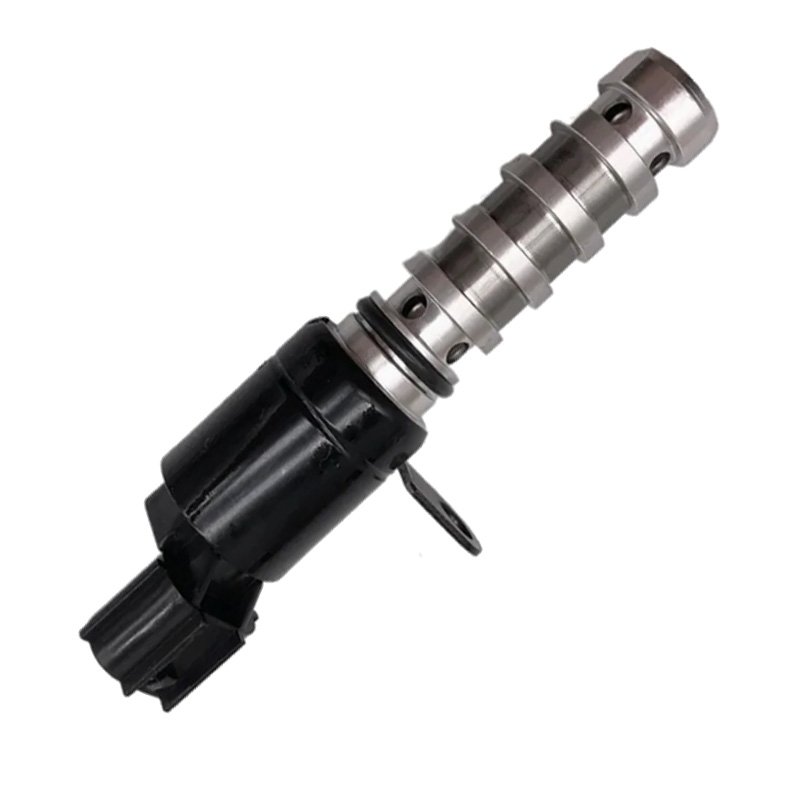

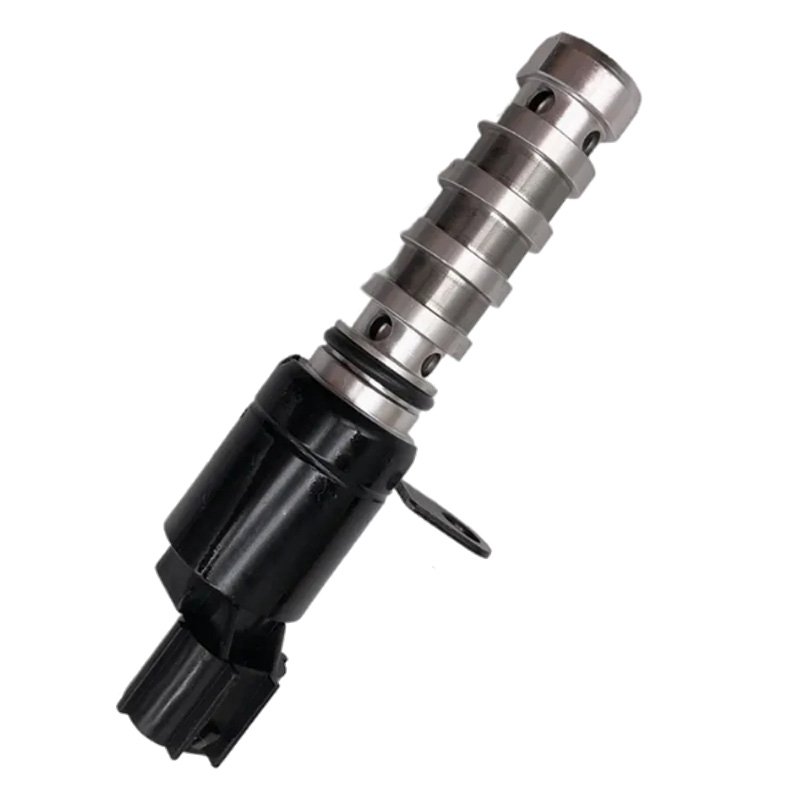

24375-2C400 Oil Control Variable Valve Timing VVT Solenoid for Hyundai Genesis Coupe/2011-2014 High quality

Description

24375-2C400 Oil Control Valve (VVT Solenoid) is a high-performance OEM component specifically designed for Hyundai Genesis Coupe’s 2.0T Theta II engines (2011-2014). Here’s everything you need to know:

✅ Confirmed Vehicle Fitment

✔ Hyundai Genesis Coupe (2011-2014)

• 2.0L Turbo (Theta II G4KF)

• Excludes 3.8L Lambda models

🔧 Technical Specifications

• OEM Part Number: 24375-2C400

• Engine Application: Theta II 2.0T GDI

• Voltage: 12V PWM-controlled

• Flow Rate: 2.4 L/min @ 45 psi (boost-specific)

• Response Time: <80ms

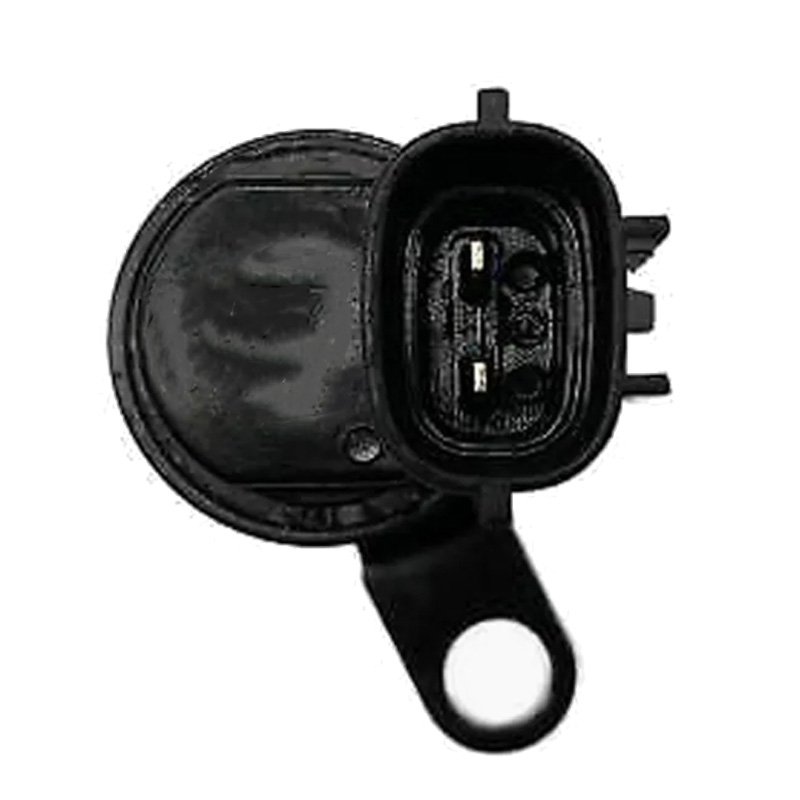

• Connector Type: AMP Superseal 1.5 series

• Mounting Torque: 8.5-10.5 Nm (75-93 in-lbs)

⚠️ Turbo-Specific Failure Symptoms

• Diagnostic Trouble Codes:
  ▸ P0014 (Exhaust Cam Position)
  ▸ P0016 (Crank/Cam Correlation)
  ▸ P0021 (Bank 2 Timing)

• Performance Issues:
  ▸ Turbo lag >2,500 RPM
  ▸ Boost pressure fluctuations
  ▸ Intermittent misfires under load
  ▸ Cold-start metallic rattling

🔧 Performance Installation Guide

1. Location:

   • Turbo side of cylinder head

   • Under intercooler piping (requires removal on some models)

2. Special Tools Required:

   • 10mm magnetic swivel socket

   • Turbo heat shield removal tool

   • Infrared temp gun (for heat cycle checks)

3. Critical Steps:

   • Allow turbo to cool before servicing

   • Clean oil galley with CRC Mass Air Flow cleaner

   • Apply anti-seize to bolt threads

   • Perform ECU adaptation reset using professional scanner
