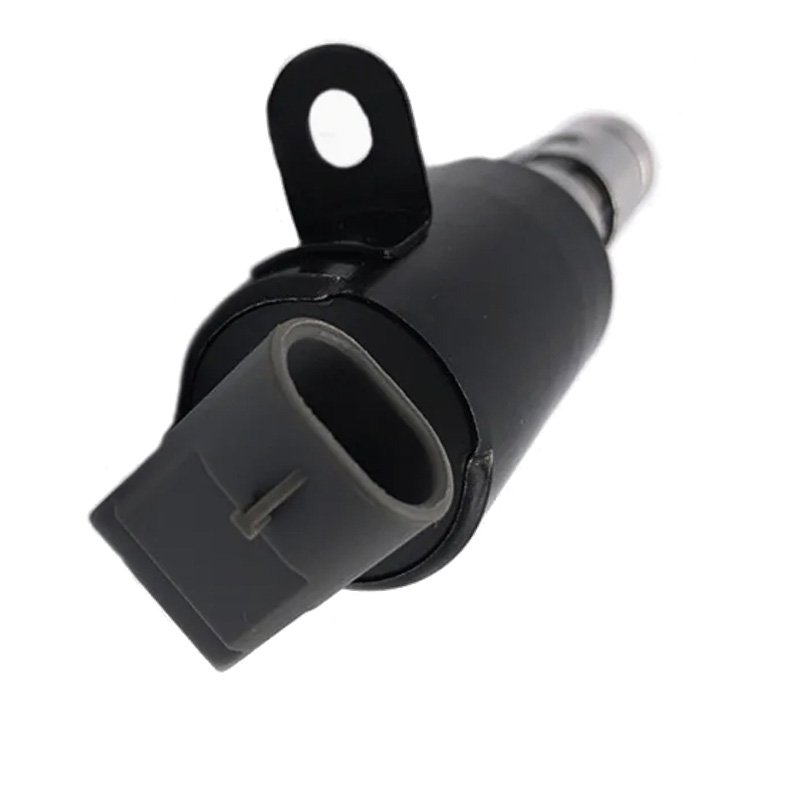

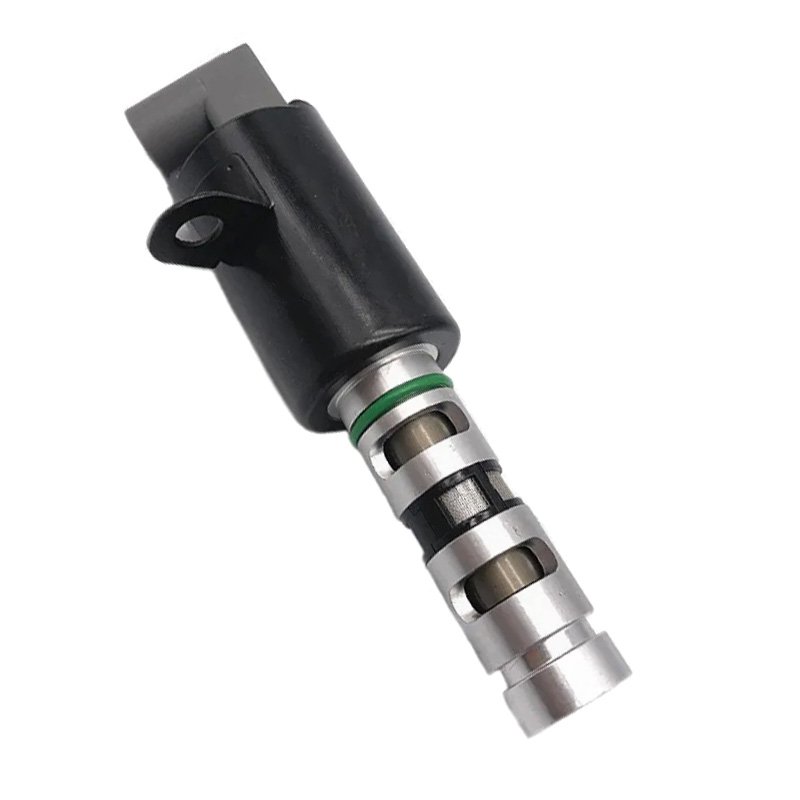

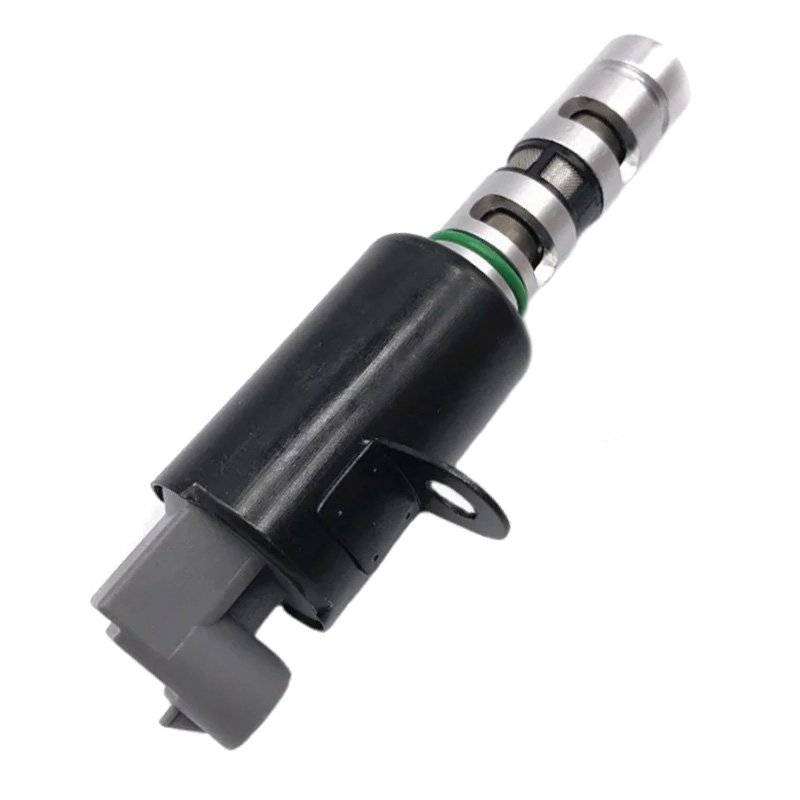

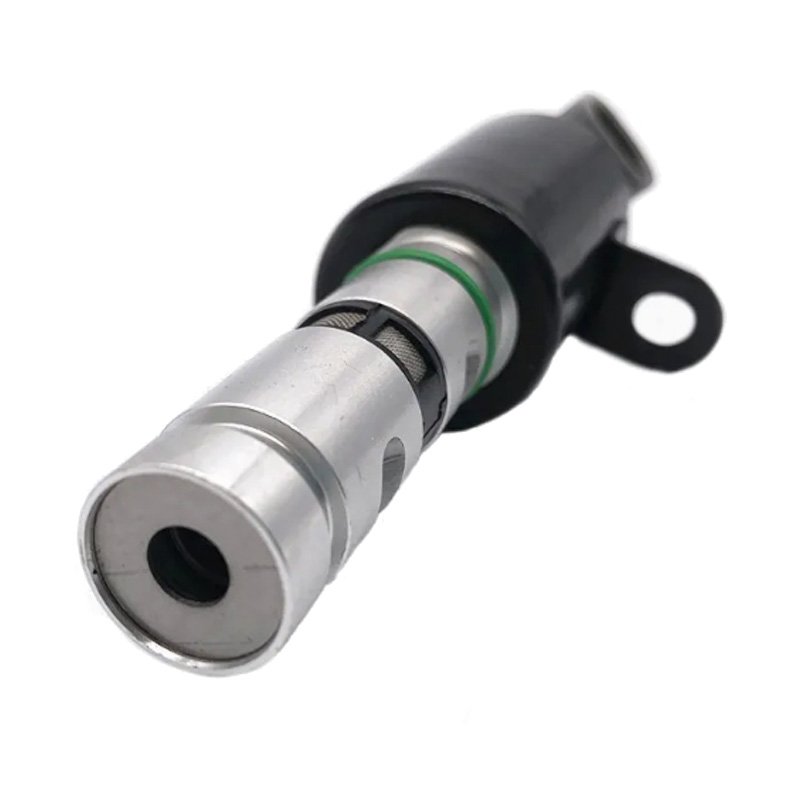

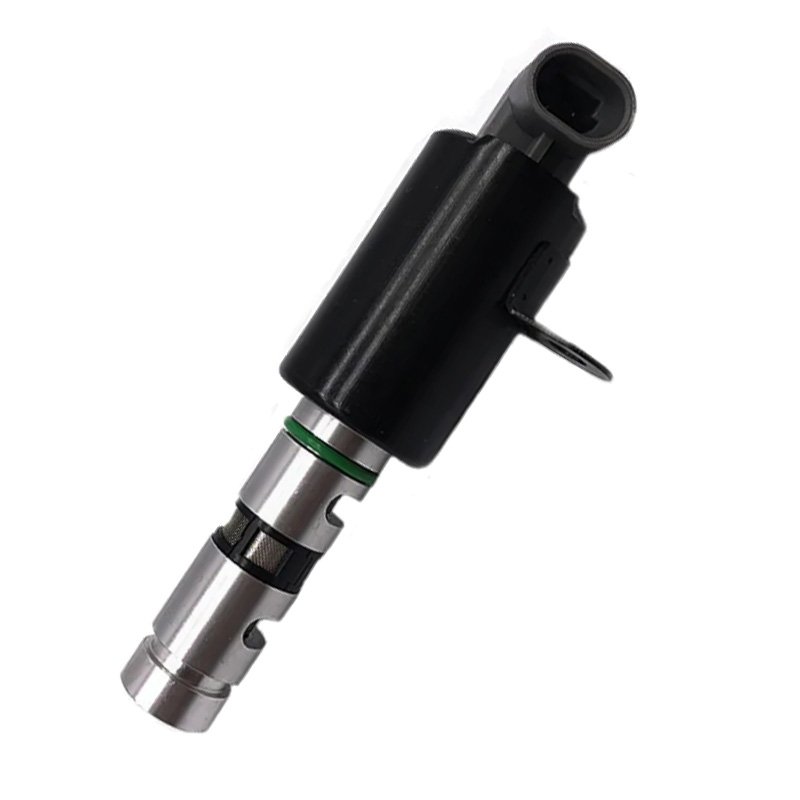

24356-3E000 Oil Control Variable Valve Timing VVT Solenoid for KiaO ptima/2006-2010 Magentis/ 2006-2010 Rondo/2007-2010Hyundai SantaFe/2006–2009 High quality

Description

24356-3E000 Oil Control Valve (VVT Solenoid) is a high-quality OEM-grade replacement designed for Hyundai/Kia Theta 2.4L engines (2006-2010 models). Here’s the complete technical breakdown:

✅ Confirmed Vehicle Compatibility

✔ Kia Optima (2006-2010) – 2.4L (Theta)
✔ Kia Magentis (2006-2010) – 2.4L (Theta)
✔ Kia Rondo (2007-2010) – 2.4L (Theta)
✔ Hyundai Santa Fe (2006-2009) – 2.4L (Theta)

*Note: This is the exhaust side solenoid (24356-3E000) – intake side uses 24355-3E000*

🔧 Technical Specifications

• OEM Part Number: 24356-3E000

• Engine Application: Theta 2.4L (G4KE)

• Voltage: 12V PWM-controlled

• Flow Rate: 1.8-2.2 L/min @ 40 psi

• Connector Type: Sumitomo TS-040 (2-pin waterproof)

• Mounting Torque: 7.5-9.5 Nm (66-84 in-lbs)

⚠️ Failure Symptoms

• Diagnostic Trouble Codes:
  ▸ P0014 (Exhaust Camshaft Position Timing)
  ▸ P0017 (Crankshaft/Camshaft Correlation)
  ▸ P0021 (Bank 2 Timing Over-Advanced)

• Operational Issues:
  ▸ Rough idle when warm
  ▸ Loss of high-RPM power (above 4,000 RPM)
  ▸ 10-15% fuel economy reduction
  ▸ Cold-start rattling (first 2-3 seconds)

🔧 Professional Installation Guide

1. Location:

   • Exhaust camshaft side of cylinder head

   • Behind power steering pump (some models)

2. Special Tools Needed:

   • 10mm swivel socket

   • O-ring pick tool

   • M8 x 1.25 thread chaser

3. Critical Steps:

   • Clean oil gallery with brake cleaner

   • Prime new solenoid with 5W-20 oil

   • Apply thread locker (blue) to bolt

   • Perform ECU reset after installation
