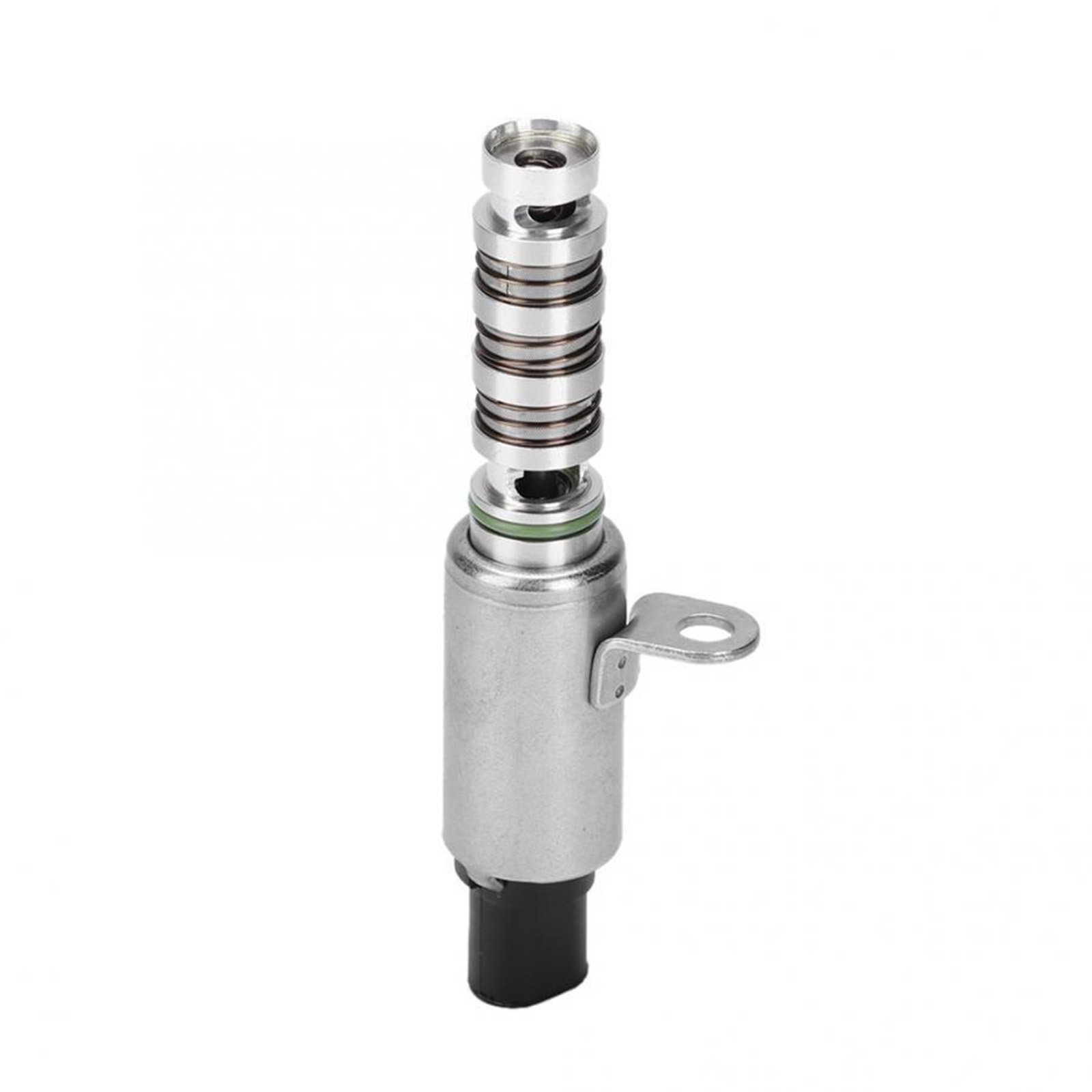

24355-2E100 VVT Solenoid Oil Control Valve For Kia Soul/2012-2023 Kia Forte/2014-2023 High quality

KiaSoul/2012-2023
KiaForte/2014-2023
KiaFortekoup/2014-2017
KiaForte5/52014-2023

KiaOptima/2017-2020
KiaSeltos/2021

24355-2E100 VVT Solenoid Oil Control Valve is a critical engine timing component designed for multiple Kia models across model years. Here’s the complete technical breakdown:

🔧 Core Specifications

✔ OEM Part Number: 24355-2E100
✔ Supercedes: 24355-2E000 (previous version)
✔ Electrical/Mechanical Specs:

• 12V DC operation

• 5.5-7.5Ω coil resistance (20°C/68°F)

• Oil pressure range: 15-90 psi

• Operating temp: -40°C to 160°C
  ✔ Key Improvements:

• Reinforced stainless steel filter screen

• High-temp fluoroelastomer seals (up to 160°C)

• Nickel-plated terminals for corrosion resistance

🚗 Precision Fitment Guide

• Kia Soul (2012-2023)

• 1.6L G4FC/G4FD Gamma MPI/GDI

• 2.0L Nu MPI (2014-2022)

• Kia Forte (2014-2023)

• 1.6L Gamma GDI

• 2.0L Nu MPI

• Also Compatible With:

• 2013-2023 Kia Rio (1.6L)

• 2015-2023 Kia Optima Hybrid (2.0L)

⚠ Failure Symptoms

▸ Most Common Signs:

• P0011/P0012/P0016/P0021 DTCs

• Cold start rattle (2-5 seconds)

• Reduced low-RPM torque

• Increased oil consumption

• Check Engine Light + reduced power mode

▸ Diagnostic Protocol:

1. Ohm Test: 5.5-7.5Ω across terminals

2. Actuation Test: Distinct click with 12V applied

3. Oil Analysis: Check for metal contamination

🔧 Installation Guide

1. Pre-Installation:

   • Disconnect battery negative terminal

   • Clean oil galley with brake cleaner

   • Replace copper crush washer (included)

2. Installation:

   • Torque to 10 N·m (89 in-lbs)

   • Apply fresh 5W-30 oil to O-ring

   • Route wiring away from heat sources

3. Post-Installation:

   • Reset ECM adaptation values

   • Perform 3 warm-up cycles

   • Verify proper oil level

📜 Technical Updates

• TSB 19-EM-017: Enhanced filtration screen design
• SSM 82541: Mandatory oil change with replacement
• Campaign 215: Extended coverage for 2016-2019 models

⚠ Critical Notes

✖ Exclusions:

• 2024+ models (Smartstream engines)

• 1.6T Gamma II (G4FJ) engines

• 2.5L Theta III engines

Pro Tips:

1. Always replace in pairs (intake + exhaust)

2. Use only OEM-approved crush washers

3. Requires 5W-30 ACEA A5/B5 oil

4. Inspect timing chain if rattle exceeds 5 seconds

For VIN-specific verification:
① Last 8 digits of VIN
② Current DTCs
③ Maintenance history
