24355-2B700 Engine Timing VVT Solenoid Valve For Kia Soul/2010-2022 /24355-2B710 High quality

Kia Soul/2010-2022
Kia Rio/2012-2023
Kia Forte5/52014-2023
Kia Fortekoup/**2014-2017

Kia Forte/2019-2023
Kia Optima/2016-2020

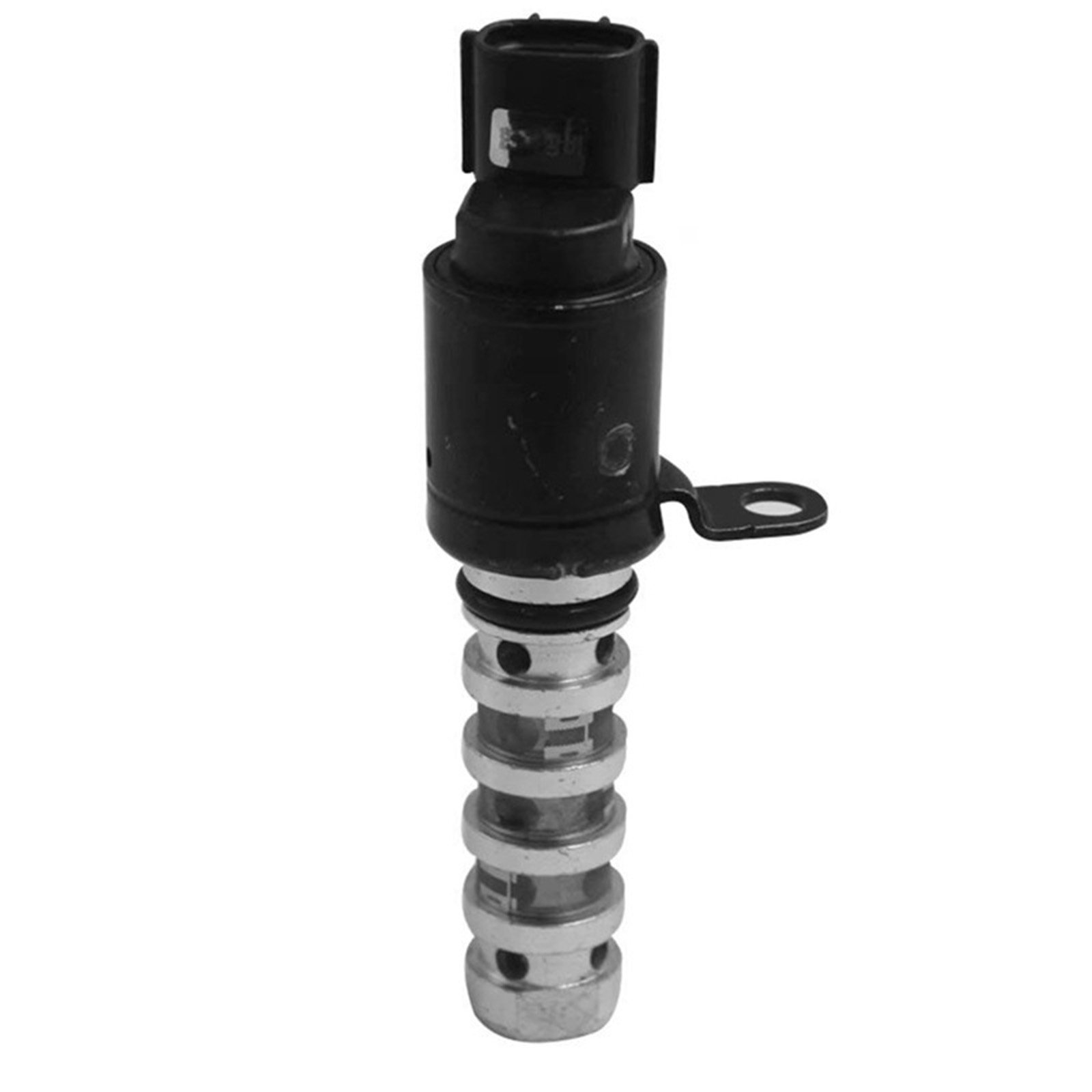

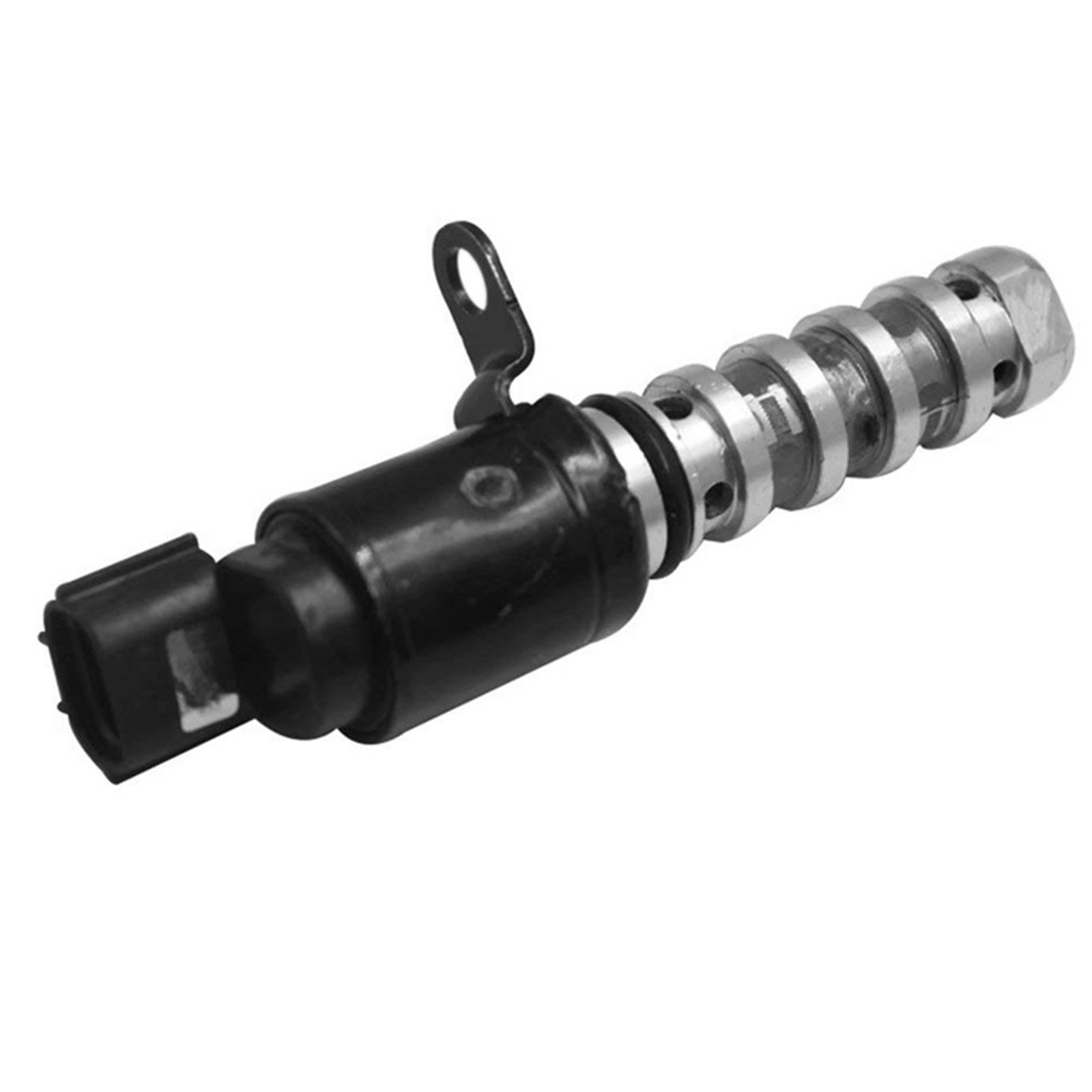

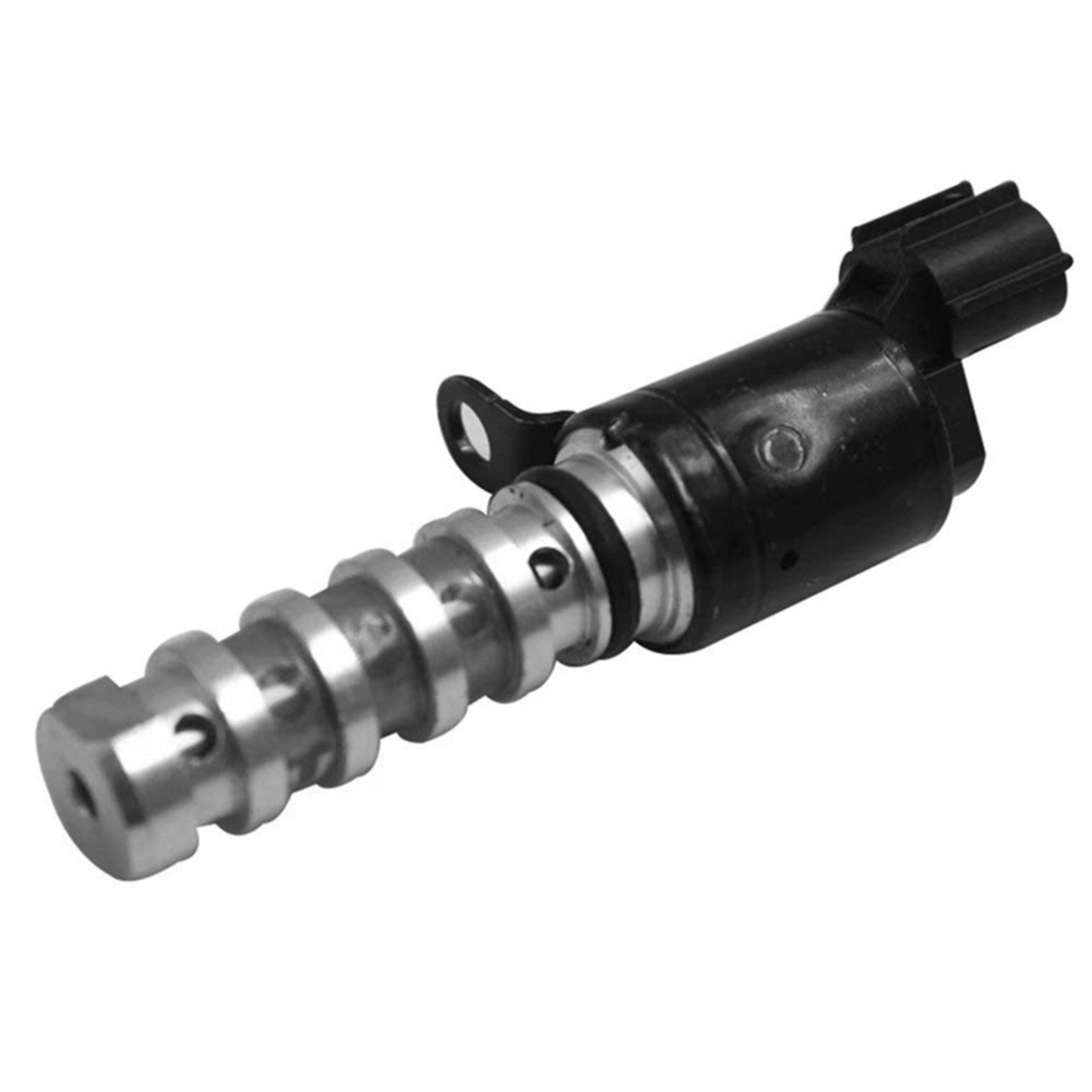

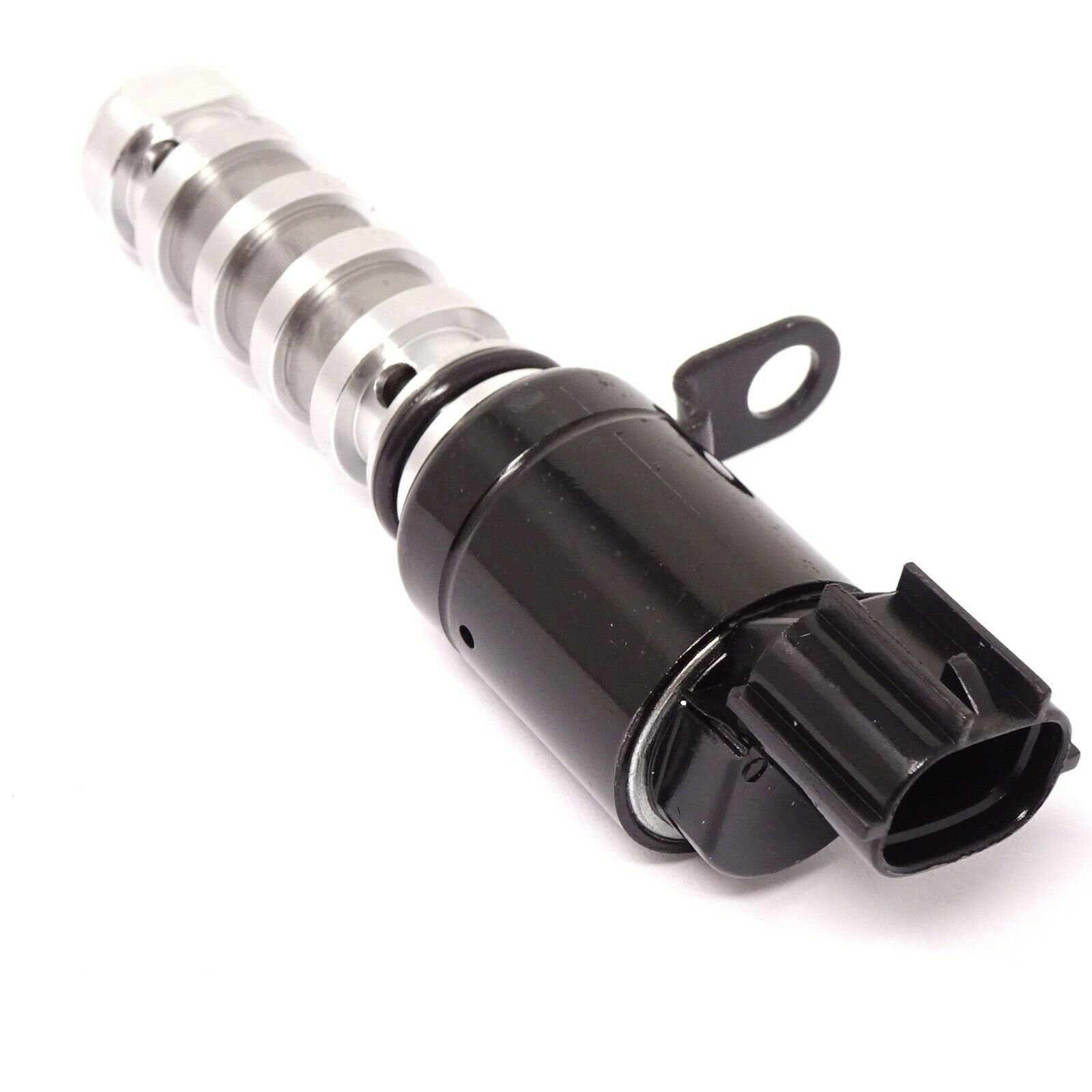

24355-2B700 VVT Solenoid Valve is a critical timing control component for Kia Soul 1.6L/2.0L models (2010-2022). Here’s the complete technical analysis:

🔧 Core Specifications

✔ OEM Part Number: 24355-2B700
✔ Electrical/Mechanical Specs:

• 12V DC operation

• 5.5-7.5Ω coil resistance (20°C/68°F)

• Oil pressure range: 14-90 psi

• Operating temp: -40°C to 160°C
  ✔ Key Improvements:

• Reinforced nylon filter screen

• Upgraded thermal-resistant seals

🚗 Precision Fitment Guide

• Primary Applications:

• Kia Soul (2010-2022)

  • 1.6L G4FC/G4FD Gamma MPI/GDI

  • 2.0L Nu MPI (2014-2019)

• Also Fits:

• 2013-2017 Kia Forte (1.6L)

• 2015-2020 Hyundai Tucson (1.6T)

⚠ Failure Symptoms

▸ Most Common Signs:

• P0011/P0012/P0016/P0021 DTCs

• Cold start rattle (2-5 seconds)

• Reduced power below 3,000 RPM

• Oil consumption increase

• Check Engine Light + limp mode

▸ Diagnostic Protocol:

1. Ohm Test: 5.5-7.5Ω across terminals

2. Actuation Test: Distinct click with 12V

3. Oil Analysis: Check for metal particles

🔧 Installation Guide

1. Pre-Installation:

   • Disconnect battery

   • Clean oil galley thoroughly

   • Replace copper crush washer

2. Installation:

   • Torque to 10 N·m (89 in-lbs)

   • Apply fresh 5W-30 oil to O-ring

   • Secure wiring away from exhaust

3. Post-Installation:

   • Reset ECM adaptation

   • Perform 3 warm-up cycles

   • Verify oil level at MAX

📜 Technical Updates

• TSB 18-EM-015: Revised screen mesh density
• SSM 81234: Mandatory oil change with replacement
• Campaign 189: Coverage extension for 2016-18 models

⚠ Critical Notes

✖ Exclusions:

• 2023+ Soul (new Smartstream engine)

• 1.6T Gamma II (G4FJ) engines

• Hybrid/PHEV variants

Pro Tips:

1. Always replace both intake/exhaust solenoids

2. Use only OEM crush washers

3. Requires 5W-30 ACEA A5/B5 oil

For VIN-specific verification:
① Last 8 digits of VIN
② Current DTCs
③ Oil change interval history
