Description

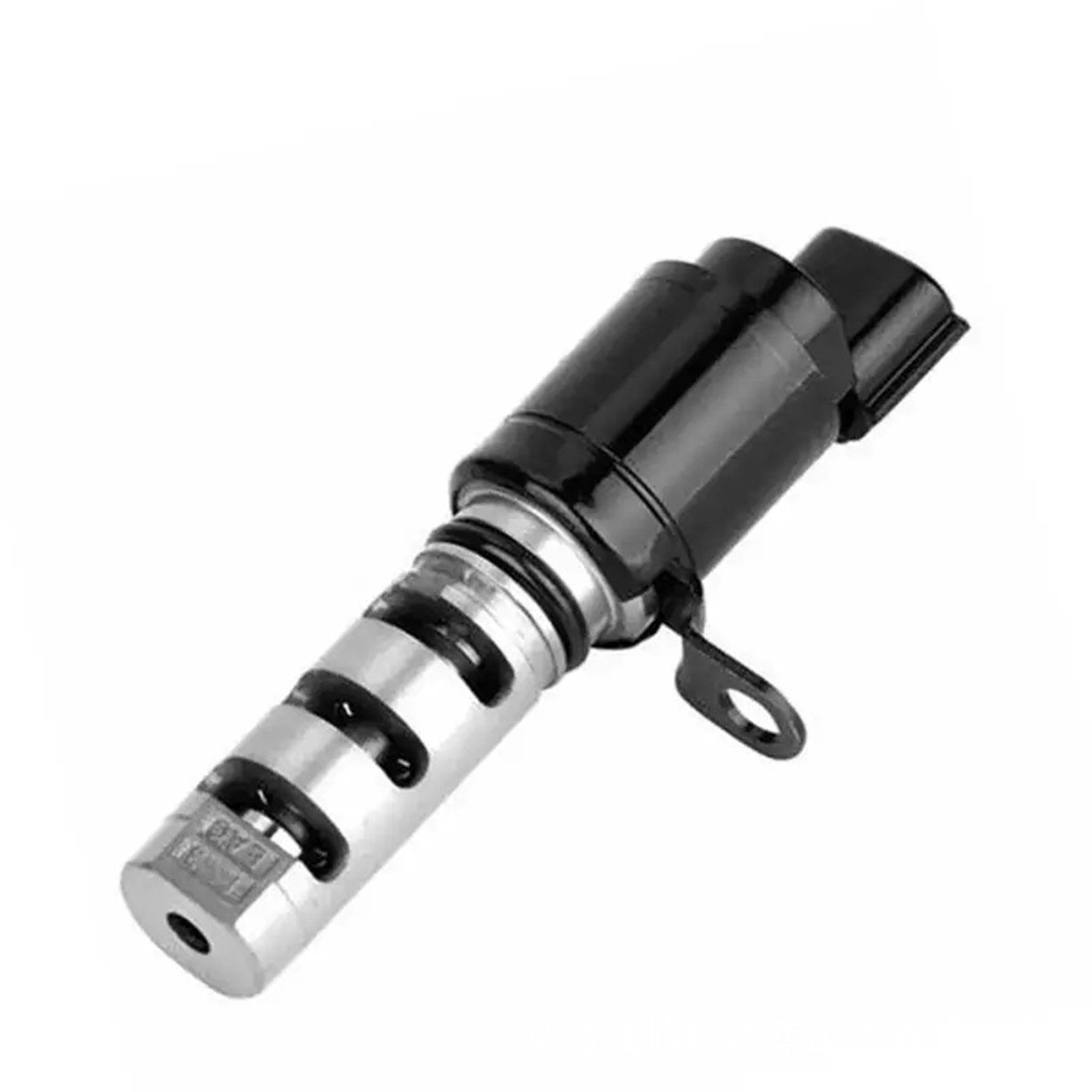

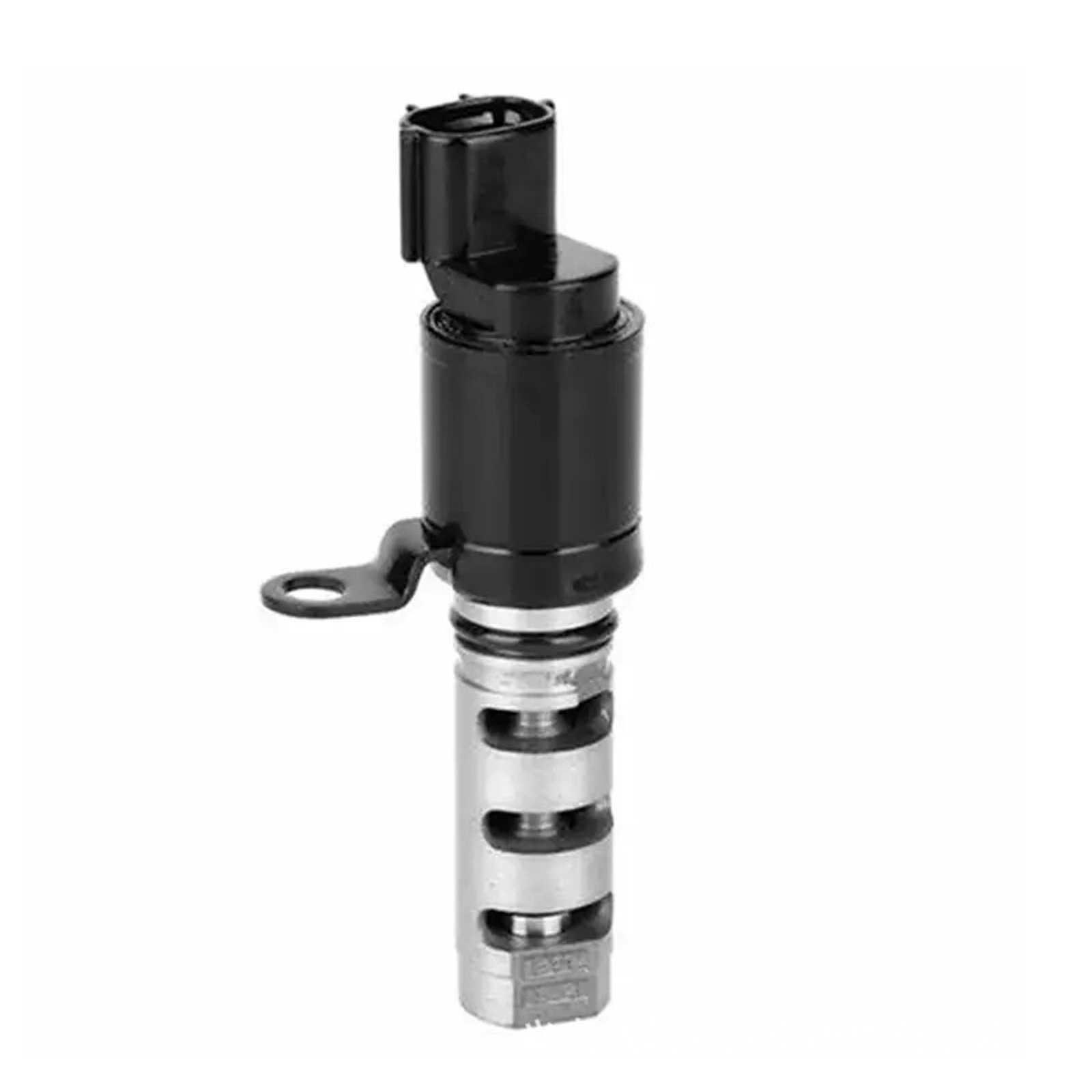

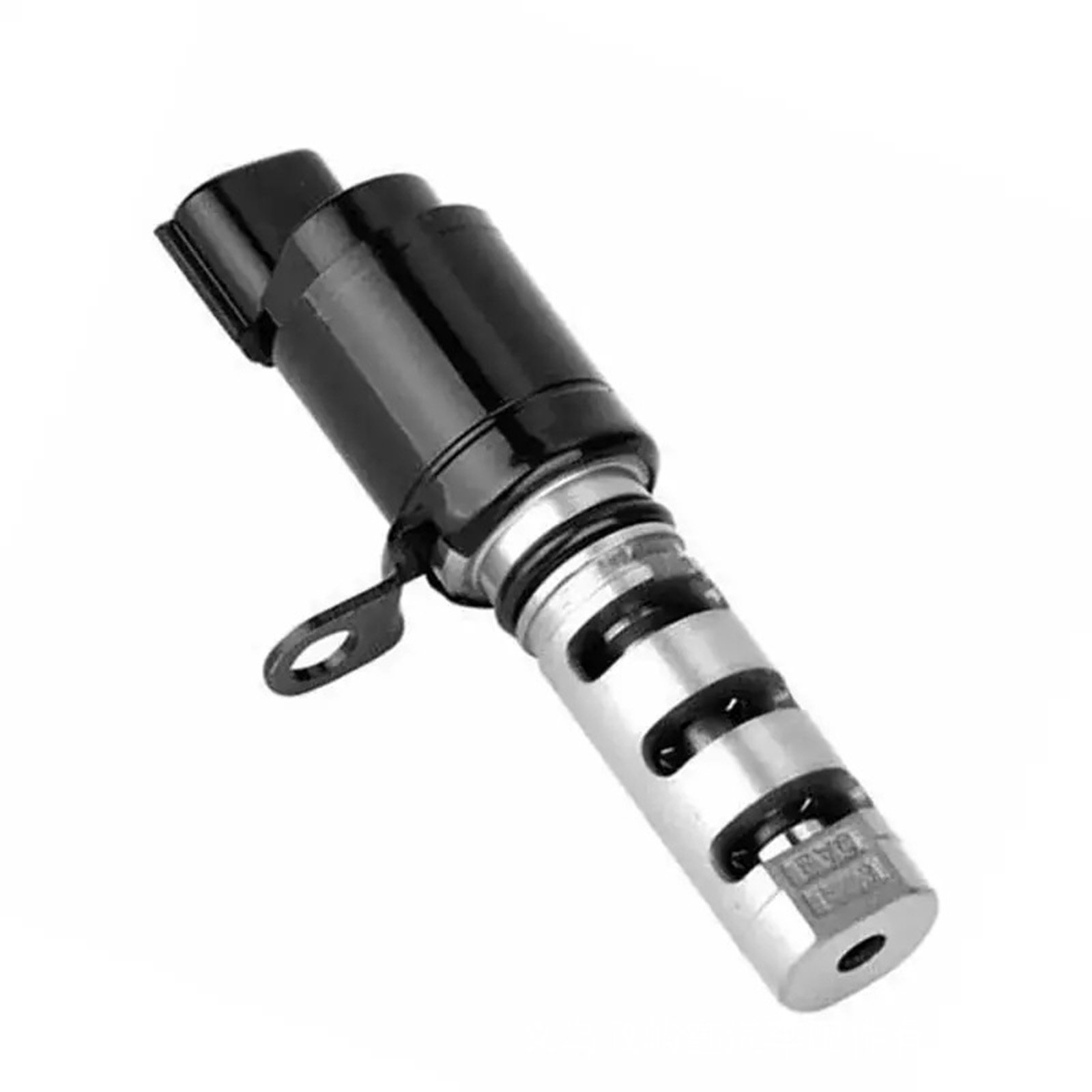

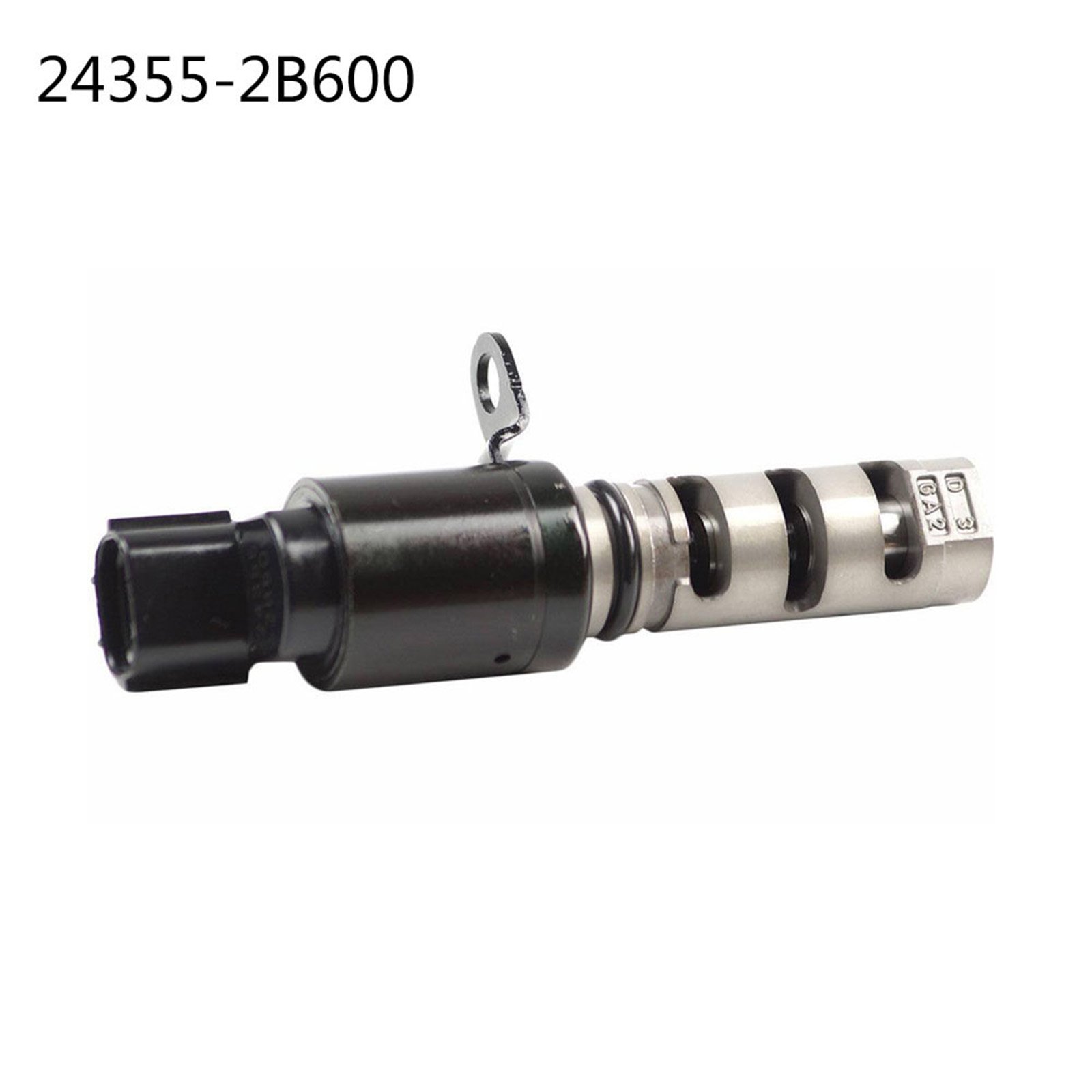

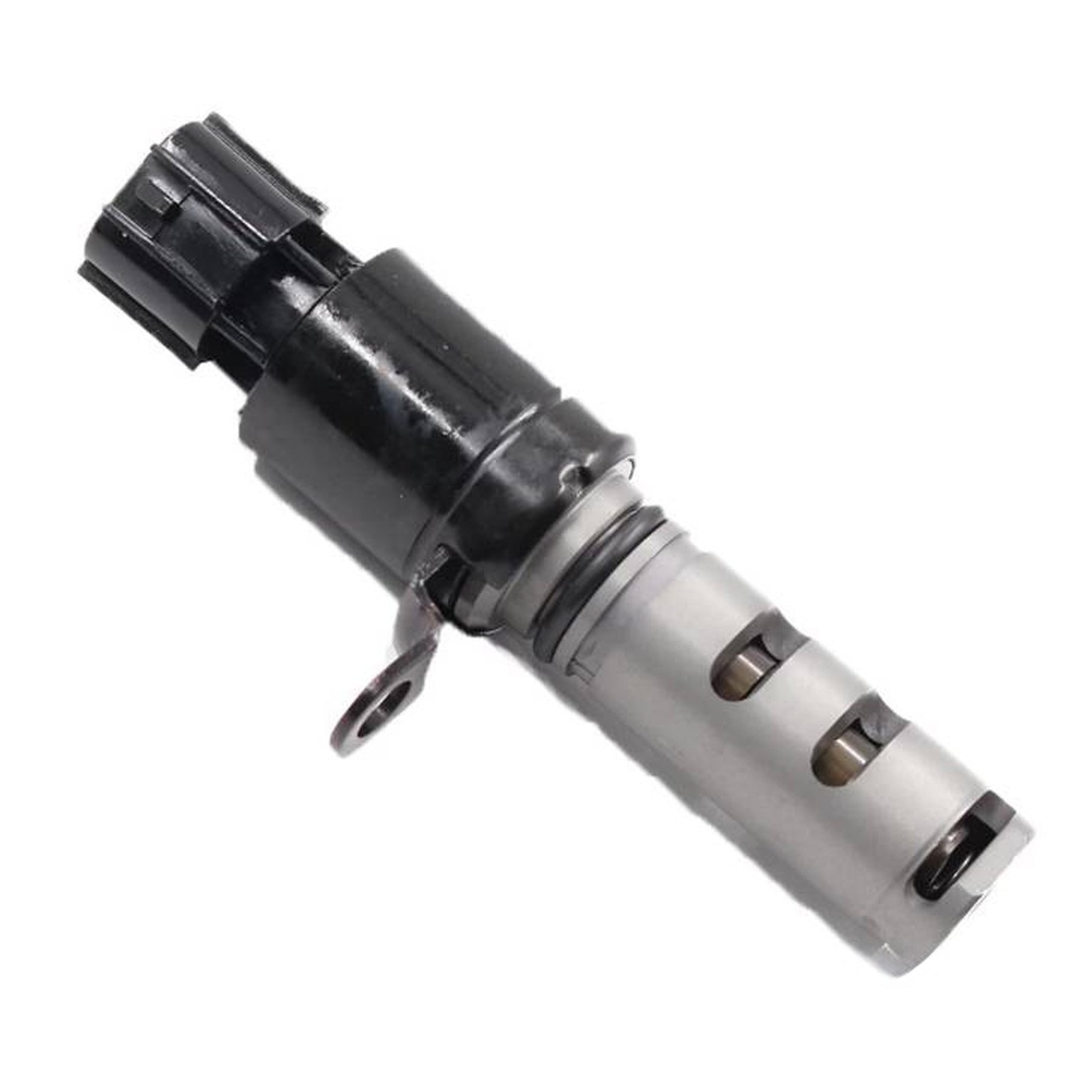

24355-2B600 Variable Valve Timing (VVT) Solenoid is a critical engine component designed for 2010-2011 Kia Soul 1.6L Gamma (G4FC) engines. Here’s the complete technical breakdown:
🔧 Core Specifications
✔ OEM Part Number: 24355-2B600
✔ Replaces: 24355-2B000 (previous version)
✔ Electrical/Mechanical Specs:
12V DC operation
6.0-7.5Ω coil resistance (at 20°C/68°F)
Oil pressure activated (15-80 psi operating range)
Operating temp: -30°C to 150°C
✔ Construction:Die-cast aluminum housing
High-temp fluoroelastomer seals
Nickel-plated 2-pin connector
🚗 Precision Fitment Guide
• Primary Application:
2010-2011 Kia Soul (AM) 1.6L G4FC
All trims (Base, Plus, Exclaim)
• Also Compatible With:
2010-2012 Hyundai Accent (1.6L)
2010-2011 Kia Forte (1.6L)
⚠ Failure Symptoms
▸ Most Common Signs:
P0011/P0012/P0016 DTCs
Cold start rattling (1-3 seconds)
10-15% fuel economy reduction
Rough idle when warm
Check Engine Light illumination
▸ Diagnostic Tests:
Resistance Check: 6.0-7.5Ω across terminals
Actuation Test: Audible click when 12V applied
Oil Screen Inspection: Check for metal debris
🔧 Installation Protocol
Pre-Installation:
Disconnect battery
Clean oil galley with brake cleaner
Replace O-ring (included)
Installation:
Torque to 89 in-lbs (10 N·m)
Apply clean oil to new O-ring
Secure wiring harness
Post-Installation:
Clear ECM codes
Perform idle relearn:
2 minutes at 2000 RPM
5 minutes idle stabilization
📜 Technical Service Bulletins
• Kia TSB 12-EM-006: Updated screen design
• SSM 75821: Requires oil change if debris found
• Campaign 134: Extended coverage for 2010 models
⚠ Critical Notes
✖ Not Compatible With:
2012+ Soul (uses 24355-2C000)
2.0L Nu engine models
Turbocharged variants
Pro Tips:
Always use 5W-20/5W-30 full synthetic oil
Replace both solenoids if mileage >100K
Genuine Kia part has upgraded filtration
For exact verification:
① Provide last 8 VIN digits
② Check current DTCs
③ Verify oil change history
