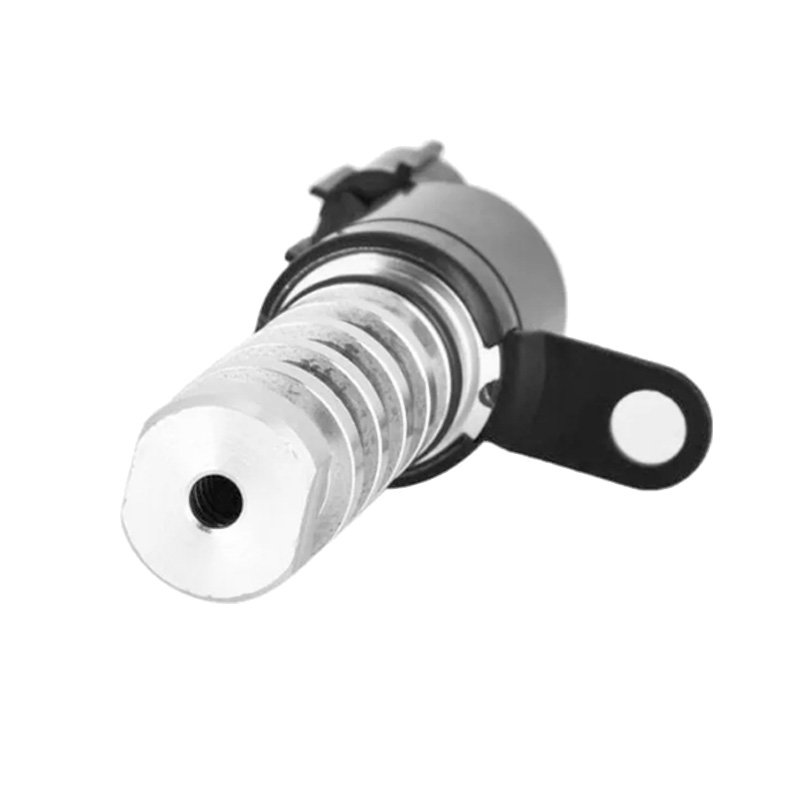

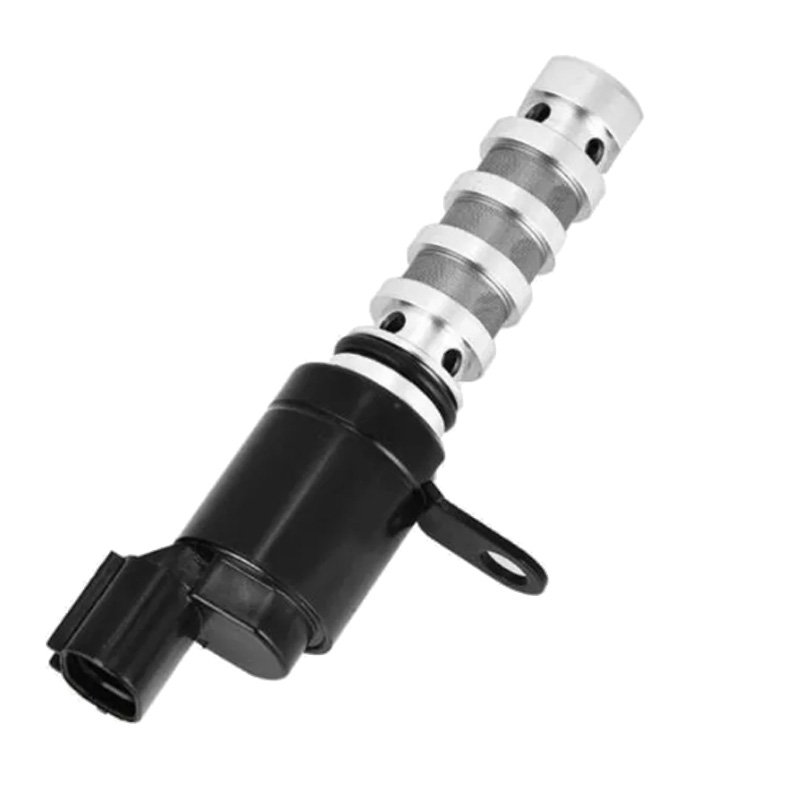

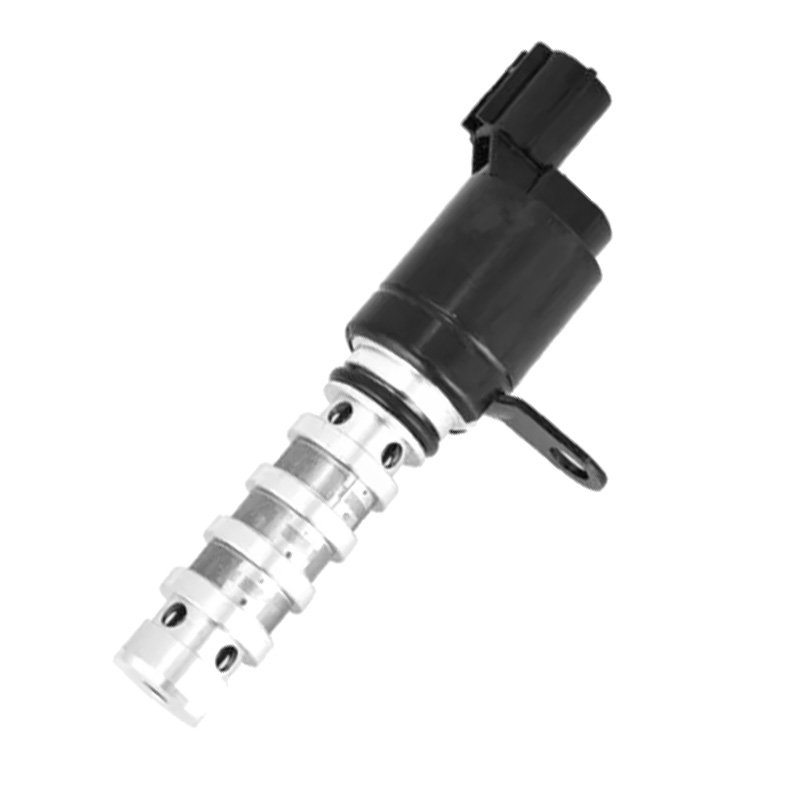

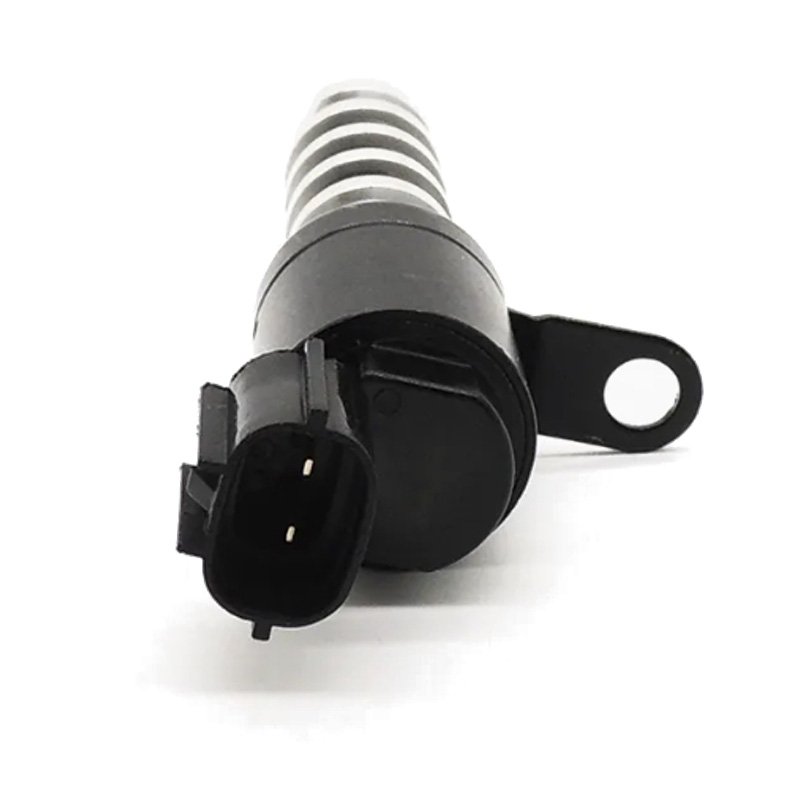

24355-03010 Oil Control Variable Valve Timing VVT Solenoid for Hyundaii10/2011 Picanto/2011 Rio/2011 ceed/2015 High quality

Description

24355-03010 Oil Control Valve (OCV) / VVT Solenoid is a high-precision component designed for small-displacement Hyundai/Kia Gamma engines (1.2L-1.4L). Here’s the detailed technical breakdown:

✅ Exact Vehicle Compatibility

✔ Hyundai i10 (2011+) – 1.2L Kappa/Gamma
✔ Kia Picanto (2011+) – 1.2L G4LA
✔ Kia Rio (2011-2017) – 1.4L G4FA
✔ Kia Ceed (2015+) – 1.4L G4FC

Note: Verify engine code on your valve cover (Gamma engines have timing chain, not belt)

🔧 Technical Specifications

• OEM Part Number: 24355-03010 (replaces older 24355-2F000)

• Engine Applications:

  • 1.2L Kappa (G4LA)

  • 1.4L Gamma (G4FA/G4FC)

• Voltage: 12V PWM-controlled

• Flow Rate: 1.8-2.2 L/min @ 40 psi

• Connector Type: Sumitomo TS-040 (waterproof)

⚠️ Failure Symptoms

• Common DTCs:

  • P0010 (VVT Circuit)

  • P0011 (Over-Advanced)

  • P0012 (Over-Retarded)

• Operational Issues:

  • Cold-start rattling (first 2-3 seconds)

  • 500-700 RPM idle fluctuation

  • 15-20% fuel economy drop in city driving
