Description

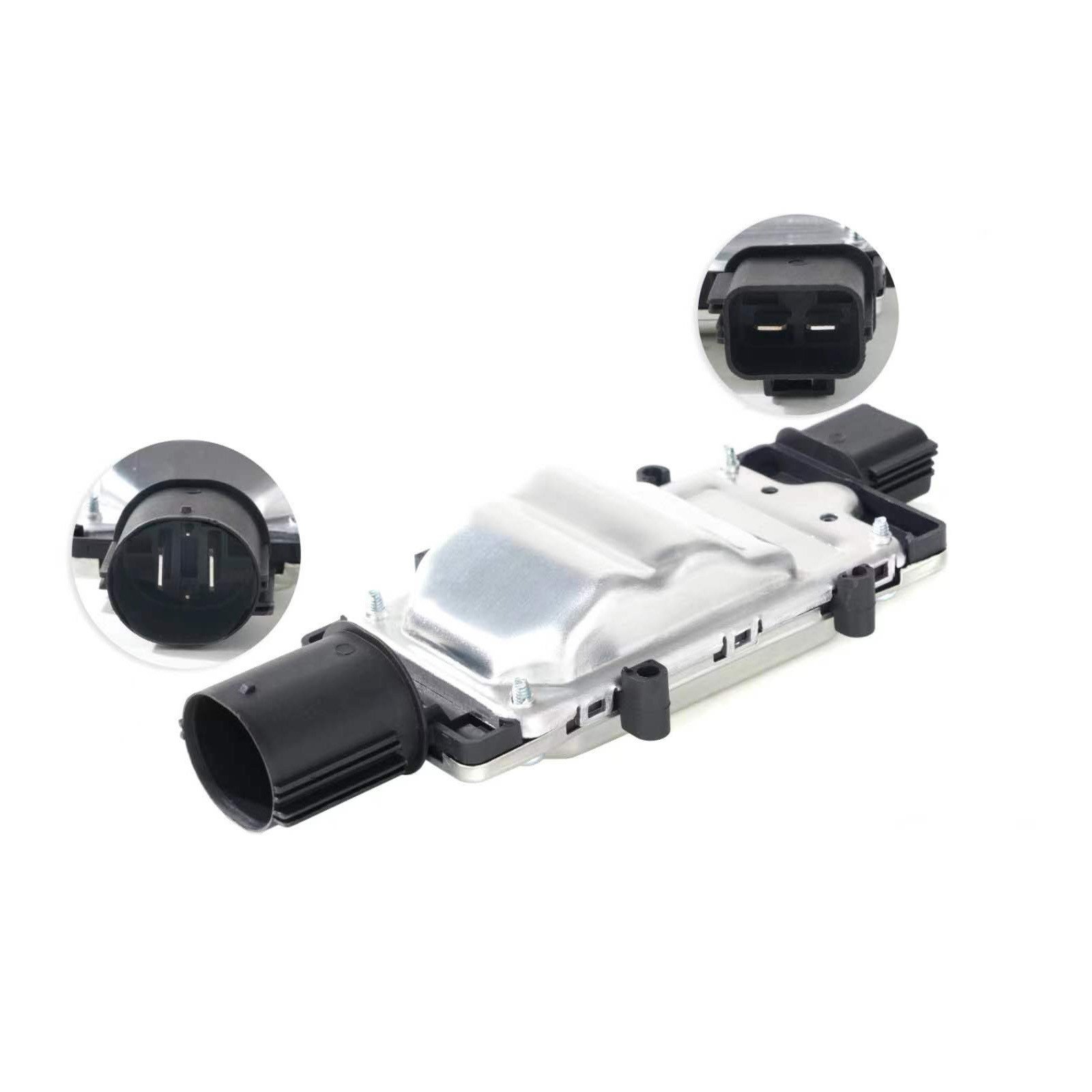

1137328464 Cooling Fan Control Module is a high-quality OEM-grade replacement designed specifically for 2012-2018 Ford Focus models. Here’s everything you need to know:
🔧 Core Specifications
✔ OEM Cross-Reference:
Ford: CV6Z-8C607-A / DM5Z-8C607-A
Motorcraft: YH-1895
✔ Electrical Ratings:12V DC operation
60A max current capacity
PWM-controlled variable speed
✔ Compatible With:Both single and dual fan setups (varies by model year)
🚗 Precision Fitment Guide
• Ford Focus (2012-2018)
Includes SE, SEL, Titanium, and ST trims
Compatible with:
2.0L Duratec (I4)
1.0L EcoBoost (I3)
2.0L EcoBoost (ST models)
• Not Compatible With:
Electric/hybrid models
2019+ Focus (redesigned cooling system)
⚠ Failure Symptoms
▸ Most Common Signs:
Engine overheating in traffic
Cooling fans not activating
Fans stuck on high speed only
Intermittent fan operation
Check Engine Light with codes:
P0480 (Fan 1 Control Circuit)
P0481 (Fan 2 Control Circuit)
P0691 (Fan Control Circuit 1 Low)
🔌 Installation Guide
Location:
Mounted on radiator fan shroud
Behind front grille (no bumper removal needed)
Replacement Steps:
Disconnect battery negative terminal
Remove 8mm mounting bolts (x2)
Unplug 4-pin electrical connector
Transfer fuse from old module if present
Testing Procedure:
KOEO test: Fan should run briefly at startup
With A/C on: Fan should run continuously
At 220°F coolant temp: High-speed activation
📜 Technical Service Bulletins
• TSB 17-0057: Addresses false P0480 codes in 2012-14 models
• SSM 48030: Recommends connector inspection for corrosion
⚠ Critical Notes
• 2015-16 models may require PCM update after replacement
• ST models have different activation thresholds
• Always check fan motor bearings – worn motors can overload new modules
For proper diagnosis:
Check fuse #79 (40A) in battery junction box
Verify coolant temp sensor operation
Test direct power to fan motor
